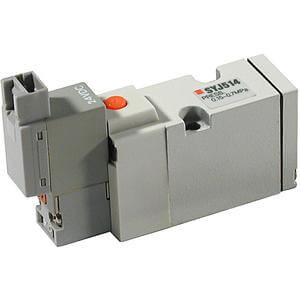

SMC SYJ514-3LZ SY1000 Solenoid Valve, Normally Closed, 110 VAC [115 VAC]
SMC
$42.85
SMC SYJ514-3LZ - SYJ500 Series 3 Port Pilot Solenoid Valve Rubber Seal Base Mounted
The SMC SYJ series is a compact pilot-operated solenoid valve for applications where mounting space is limited but full directional control is still required.
Specifications
| Type Of Actuation | Normally Closed |
| Body Option | Individual Pilot Exhaust Style |
| Coil Specifications | Standard |
| Rated Voltage | 110 VAC [115 VAC] |
| Electrical Entry | L-type Plug Connector With Lead Wire (Length 300 mm) |
| Light/Surge Voltage Suppressor | With Light/Surge Voltage Suppressor |
| Manual Override | Push-turn Locking Type |
| Port Size | Without Sub-plate |
| Thread Type | Rc |
Features
- Power consumption: 0.1 W (with power saving circuit)
Applications
Used for compact cylinder control where panel space is limited.
Frequently Asked Questions
What voltage is the SMC SYJ514-3LZ?
The SYJ514-3LZ is rated 110 VAC [115 VAC].
What type of actuation does the SYJ514-3LZ use?
It is a normally closed valve.
Automation Distribution is an authorized SMC distributor. Call 1-888-600-3080 for application support or volume pricing.
- Type Of Actuation:
- Normally Closed
- Body Option:
- Individual Pilot Exhaust Style
- Coil Specifications:
- Standard
- Rated Voltage:
- 110 VAC [115 VAC]
- Electrical Entry:
- L-type Plug Connector With Lead Wire (Length 300 mm)
- Light/Surge Voltage Suppressor:
- With Light/Surge Voltage Suppressor
- Manual Override:
- Push-turn Locking Type
- Port Size:
- Without Sub-plate
- Thread Type:
- Rc
