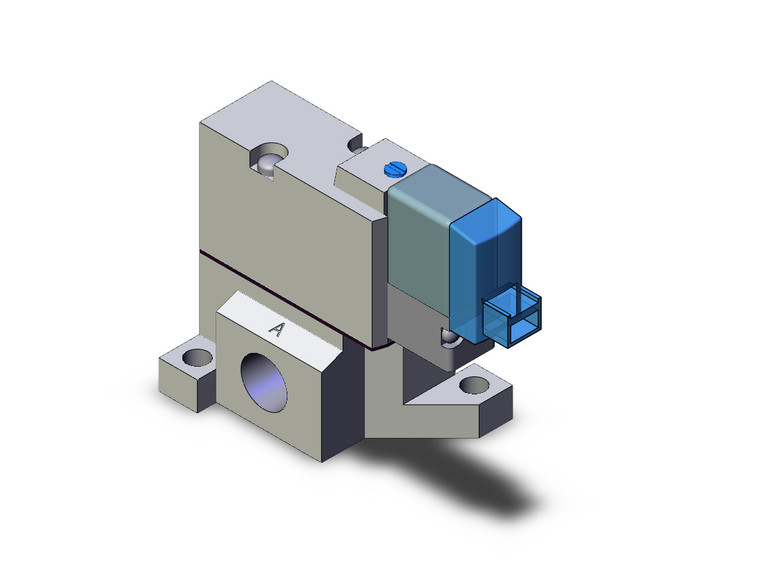

SMC SYJ514R-5LOZD-01T SY1000 Solenoid Valve, Normally Closed, 24 VDC
SMC
$55.44
SMC SYJ514R-5LOZD-01T - SYJ500 Series 3 Port Pilot Solenoid Valve Rubber Seal Base Mounted
The SMC SYJ series is a compact pilot-operated solenoid valve for applications where mounting space is limited but full directional control is still required.
Specifications
| Type Of Actuation | Normally Closed |
| Body Option | External Pilot Style |
| Coil Specifications | Standard |
| Rated Voltage | 24 VDC |
| Electrical Entry | L-type Plug Connector Without Connector |
| Light/Surge Voltage Suppressor | With Light/Surge Voltage Suppressor |
| Manual Override | Push-turn Locking Slotted Type |
| Port Size | 1/8 Port With Sub-Plate |
| Thread Type | NPTF |
Features
- Power consumption: 0.1 W (with power saving circuit)
Applications
Used for compact cylinder control where panel space is limited.
Related Components
- SYJ500-9-1 - Sub-plate
Frequently Asked Questions
What voltage is the SMC SYJ514R-5LOZD-01T?
The SYJ514R-5LOZD-01T is rated 24 VDC.
What type of actuation does the SYJ514R-5LOZD-01T use?
It is a normally closed valve.
Automation Distribution is an authorized SMC distributor. Call 1-888-600-3080 for application support or volume pricing.
- Type Of Actuation:
- Normally Closed
- Body Option:
- External Pilot Style
- Coil Specifications:
- Standard
- Rated Voltage:
- 24 VDC
- Electrical Entry:
- L-type Plug Connector Without Connector
- Light/Surge Voltage Suppressor:
- With Light/Surge Voltage Suppressor
- Manual Override:
- Push-turn Locking Slotted Type
- Port Size:
- 1/8 Port With Sub-Plate
- Thread Type:
- NPTF
