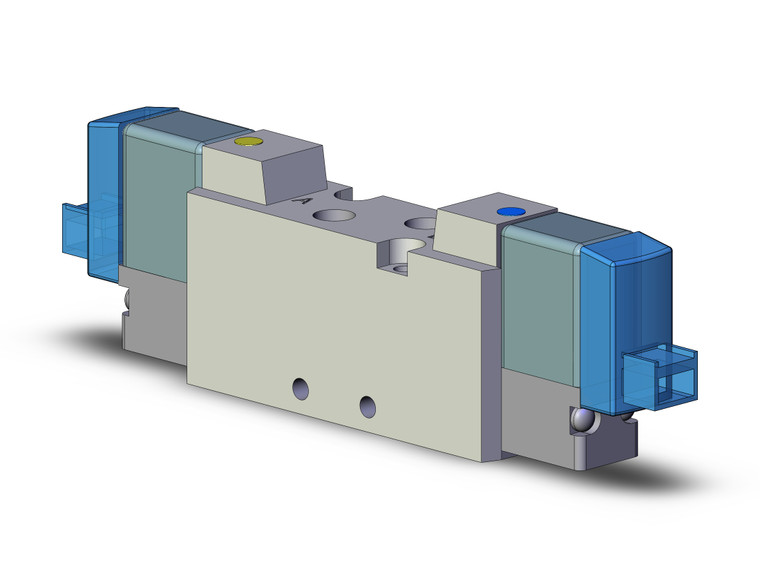

SMC SYJ5223-5LOU-M5 SYJ5000 Solenoid Valve, 2 Position Double, Body Ported, 24 VDC, M5X0.8
SMC
$75.65
SMC SYJ5223-5LOU-M5 - SYJ5000 Series 5 Port Solenoid Valve Rubber Seal Body Ported Single Valve

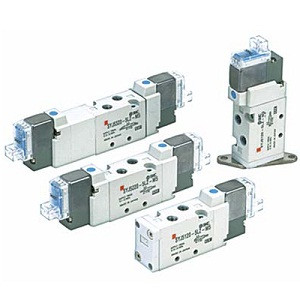

The SMC SYJ series is a compact pilot-operated solenoid valve for applications where mounting space is limited but full directional control is still required.
Specifications
| Series | SYJ5000 |
| Type Of Actuation | 2 Position Double |
| Piping Type | Body Ported |
| Body Option | Main/Pilot Valve Common Exhaust |
| Coil Specifications | Standard |
| Rated Voltage | 24 VDC |
| Electrical Entry | L-type Plug Connector Without Connector |
| Light/Surge Voltage Suppressor | With Light/Surge Voltage Suppressor(Non-polar Type) |
| Manual Override | Non-locking Push Type |
| A/B Port Size | M5X0.8 |
| Bracket | Without Bracket |
| Made To Order | Standard |
Features
- Combined mounting of 3 port valve and 5 port valve is possible
- Electricity consumption: 0.1 W (with power saving circuit)
- Manifold type No.: SS5YJ3，SS5YJ5，SS5YJ7
Applications
Used for compact cylinder control where panel space is limited.
Related Components
- SYJ5000-22-1 - Sub-plate
Frequently Asked Questions
What voltage is the SMC SYJ5223-5LOU-M5?
The SYJ5223-5LOU-M5 is rated 24 VDC.
What type of actuation does the SYJ5223-5LOU-M5 use?
It is a 2 position double valve.
What port size does the SYJ5223-5LOU-M5 have?
The A and B ports are M5X0.8.
Automation Distribution is an authorized SMC distributor. Call 1-888-600-3080 for application support or volume pricing.
