SMC SYJ722-5LZ-01T SY2000 Solenoid Valve, Normally Open, 24 VDC
SMC
$53.46

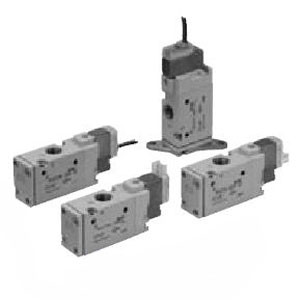

SMC SYJ722-5LZ-01T - SYJ700 Series 3Port Pilot Solenoid Valve Rubber Seal Body Ported
The SMC SYJ series is a compact pilot-operated solenoid valve for applications where mounting space is limited but full directional control is still required.
Specifications
| Type Of Actuation | Normally Open |
| Body Option | Individual Pilot Exhaust Style |
| Coil Specifications | Standard |
| Rated Voltage | 24 VDC |
| Electrical Entry | L-type Plug Connector With Lead Wire (Length 300 mm) |
| Light/Surge Voltage Suppressor | With Light/Surge Voltage Suppressor |
| Manual Override | Push-turn Locking Type |
| Thread Type | NPTF |
| Bracket | Without Bracket |
| Made To Order | Standard |
Features
- Power consumption: 0.1 W (with power saving circuit)
Applications
Used for compact cylinder control where panel space is limited.
Related Components
- SYJ700-9-1 - Sub-plate
Frequently Asked Questions
What voltage is the SMC SYJ722-5LZ-01T?
The SYJ722-5LZ-01T is rated 24 VDC.
What type of actuation does the SYJ722-5LZ-01T use?
It is a normally open valve.
Automation Distribution is an authorized SMC distributor. Call 1-888-600-3080 for application support or volume pricing.
- Type Of Actuation:
- Normally Open
- Body Option:
- Individual Pilot Exhaust Style
- Coil Specifications:
- Standard
- Rated Voltage:
- 24 VDC
- Electrical Entry:
- L-type Plug Connector With Lead Wire (Length 300 mm)
- Light/Surge Voltage Suppressor:
- With Light/Surge Voltage Suppressor
- Manual Override:
- Push-turn Locking Type
- Thread Type:
- NPTF
- Bracket:
- Without Bracket
- Made To Order:
- Standard
