SMC SYJ7540-5LZ SYJ7000 Solenoid Valve, 3 Position Pressure Center, Base Mounted, 24 VDC
SMC
$94.05

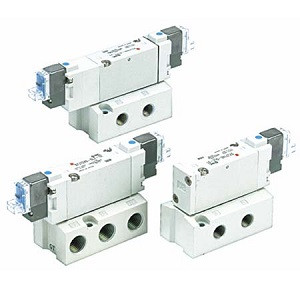

SMC SYJ7540-5LZ - SYJ7000 Series 5 Port Solenoid Valve Rubber Seal Base Mounted Single Valve
The SMC SYJ series is a compact pilot-operated solenoid valve for applications where mounting space is limited but full directional control is still required.
Specifications
| Series | SYJ7000 |
| Type Of Actuation | 3 Position Pressure Center |
| Piping Type | Base Mounted |
| Body Option | Pilot Valve Individual Exhaust For The Pilot Valve |
| Coil Specifications | Standard |
| Rated Voltage | 24 VDC |
| Electrical Entry | L-type Plug Connector With Lead Wire (Length 300 mm) |
| Light/Surge Voltage Suppressor | With Light/Surge Voltage Suppressor |
| Manual Override | Non-locking Push Type |
| Port Size | Without Sub-plate |
| Thread Type | Rc |
Features
- Combined mounting of 3 port valve and 5 port valve is possible
- Electricity consumption: 0.1 W (with power saving circuit)
- Manifold type No.: SS5YJ3，SS5YJ5，SS5YJ7
Applications
Used for compact cylinder control where panel space is limited.
Frequently Asked Questions
What voltage is the SMC SYJ7540-5LZ?
The SYJ7540-5LZ is rated 24 VDC.
What type of actuation does the SYJ7540-5LZ use?
It is a 3 position pressure center valve.
Automation Distribution is an authorized SMC distributor. Call 1-888-600-3080 for application support or volume pricing.
- Series:
- SYJ7000
- Type Of Actuation:
- 3 Position Pressure Center
- Piping Type:
- Base Mounted
- Body Option:
- Pilot Valve Individual Exhaust For The Pilot Valve
- Coil Specifications:
- Standard
- Rated Voltage:
- 24 VDC
- Electrical Entry:
- L-type Plug Connector With Lead Wire (Length 300 mm)
- Light/Surge Voltage Suppressor:
- With Light/Surge Voltage Suppressor
- Manual Override:
- Non-locking Push Type
- Port Size:
- Without Sub-plate
- Thread Type:
- Rc
