ABB
Molded Case Circuit Breakers, TMAX Series

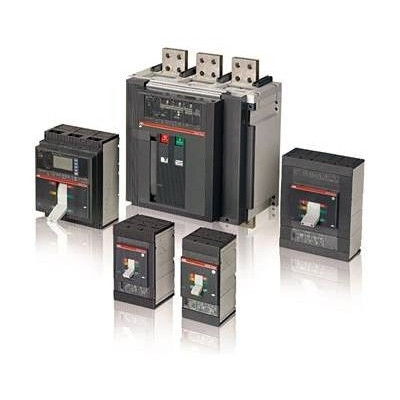

Item# T3N100TWS4 - Circuit Breaker, 3-P, 100A/480VAC, 25KAIC@480VAC, 600Y/347V,480V Delta, w/Shunt Trip, Less Terminal Lugs
TMAX Series Information
- Branch Circuit Protector
- UL 489 Listed E93565
- 15 ~ 2500 Amps
- 240/277/480/600Y VAC
- 250/500/600 VDC
Specifications
Item Number:
T3N100TWS4
UPC:
804325312554
Brand:
ABB
Item Category:
Circuit Breakers
Subcategory:
Molded Case
Series:
TMAX
Poles:
3
Amps:
100
UL Standard:
kAIC @ 480 VAC:
25
Max Voltage:
600Y/347 VAC;500 VDC
Shunt Trip:
Yes
Protection:
Branch Circuit
Trip Unit:
Fixed Thermal / Fixed Magnetic
Mounting:
Panel
kAIC @ 240 VAC:
50
CSA Standard:
22.2
IEC Standard:
EN60898/60947-2
IR @ 600Y/347 VAC:
10
kAIC @ 500 VDC:
25
Approvals:
UL;CSA;IEC
H x W x D:
5.91 in x 4.13 in x 4.13 in
Net Weight:
1 lb
Gross Weight:
1 lb
