ABB T5SQ400BWS2 ab t5sq400bws2

ABB T5SQ400BWS2 ab t5sq400bws2

ABB
SKU:
T5SQ400BWS2
$7,568.66
Condition:
New
Current Stock:
Description

Overview

ABB

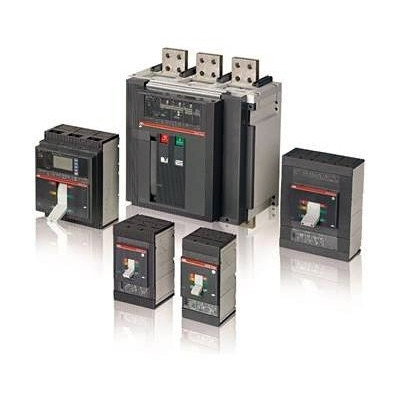

Molded Case Circuit Breakers, TMAX Series

Item# T5SQ400BWS2 - Circuit Breaker 400A 3-P LS/I Ul 100P

TMAX Series Information
  • Branch Circuit Protector
  • UL 489 Listed E93565
  • 15 ~ 2500 Amps
  • 240/277/480/600Y VAC
  • 250/500/600 VDC
The Tmax Series of circuit breakers from ABB offer a full range of molded case circuit breakers that meet the UL 489 and CSA C22.2 Standards. Covering current ratings between 15 A and 2500 A and interrupting ratings, at 480 V AC, up to 150 kA. A wide range of accessories will complete the installation including shunt trips, auxiliary contacts, undervoltage release, and more.

Specifications

Item Number:
T5SQ400BWS2
UPC:
804325425445
Brand:
ABB
Item Category:
Circuit Breakers
Subcategory:
Molded Case
Series:
TMAX
Poles:
3
Amps:
400
UL Standard:
489
kAIC @ 480 VAC:
35
Max Voltage:
600 VAC
Shunt Trip:
Yes
Protection:
Branch Circuit
Trip Unit:
Electronic
Mounting:
Panel
Electronic Trip Unit:
LS;LI
kAIC @ 240 VAC:
100
CSA Standard:
22.2
IEC Standard:
EN60898/60947-2
100% Rated:
Yes
kAIC @ 600 VAC:
25
Approvals:
UL;CSA;IEC
H x W x D:
8.07 in x 5.49 in x 5.47 in
  Net Weight:
1 lb
  Gross Weight:
1 lb
