Description
Overview
ABB
Molded Case, TMAX Series

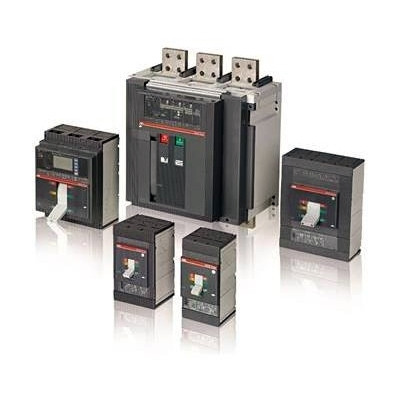

Item# TS3H225DW - Molded Case Switch, 3-P, 225A/480V, 50KAIC@480VAC, Less Terminal Lugs, 2250A MAgnetic Trip
TMAX Series Information
- Suitable for use in both Industrial and Civil low voltage plants.
- Guarantees strong limitation of specific let-through energy and reduction in peak currents.
Tmax are characterized by an extremely high level of performances with limited overall dimensions, installation simplicity and an increasingly greater guarantee of safety for the operator thanks to their reinforced insulation. Tmax circuit-breakers, thanks to their performances, can be used for all distribution and sub-distribution application for both AC and DC electrical plants.
- Limits overheating of devices and electrodynamic stresses.
Specifications
Item Number:
TS3H225DW
UPC:
804325431811
Brand:
ABB
Item Category:
Switches
Subcategory:
Molded Case
Series:
TMAX
Number of Poles:
3
Rating:
225 Amps
Rated Voltage AC:
600 Volts AC
Interrupting Current:
50 K Amps
Rated Voltage DC:
600 Volts DC
Interrupting Voltage:
480 Volts
Magnetic Trip:
2,250 Amps
Frame Size:
Ts3
H x W x D:
104.64 in x 6.41 in x 4.6 in
Net Weight:
5.31 OZ
Gross Weight:
5.31 OZ
