Turck B2N45H-Q20L60-2Li2-H1151/S97 Inclination 1534037
Turck
$568.10
Manufacturer's Part Number: 1534037
Inclinometer. With Increased Temperature Range. Ident. no.: 1534037. Plastic, PC. For temperatures up to - 40 °C. Zero point calibration +/ 15°. Two analog outputs. M12 x 1 male connector
- Measuring principle:
- Acceleration
- Measuring range:
- -45 45°
- Number of measuring axes:
- 2
- Construction size:

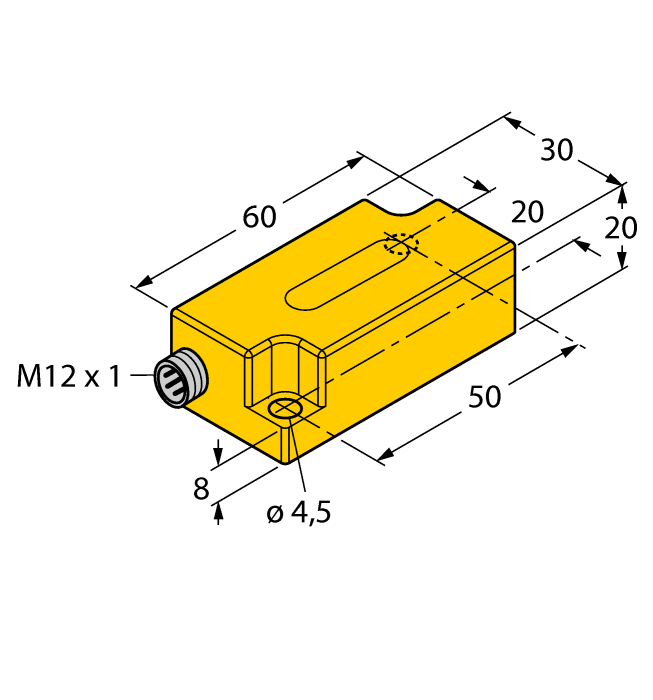

- 60 x 30 x 20 mm
- Operating voltage:
- 10 30 VDC
- Output function:
- Analog output
- Current output:
- 4 20 mA
- Electrical connection:
- Connector, M12 × 1
- Housing material:
- Plastic, PC
- Ambient temperature:
- -40 +70 °C
- Protection class:
- IP68/IP69K
- Catalog:
- View
- Datasheet:
- View
