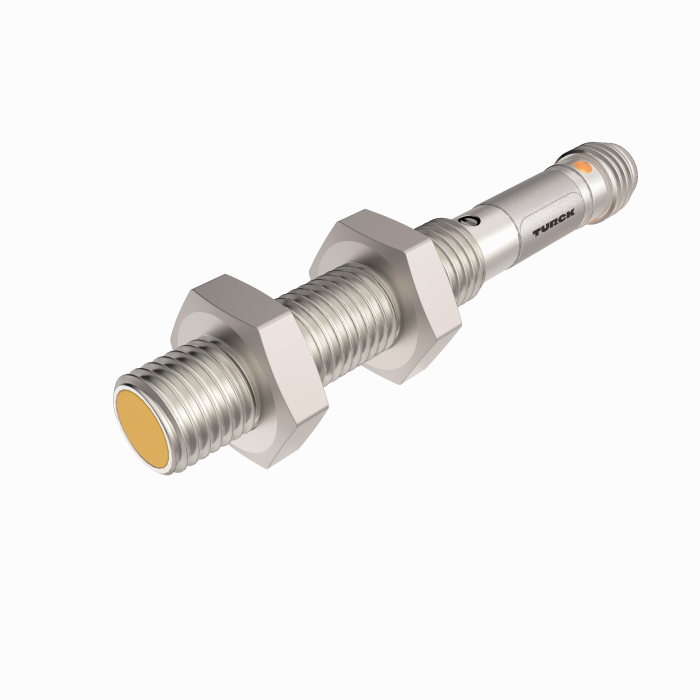

TURCK Bc2-Em08-Un8X-V1131 Capacitive 100021820
Turck
$423.50
Manufacturer's Part Number: 100021820
Capacitive Sensor. Ident. no.: 100021820. M8 Ã 1 threaded barrel. Stainless steel housing, probe made of PBT. Fine adjustment via potentiometer. DC 3-wire, 18
30 VDC. Adjustable NC/NO contact. Factory-set NO contact. 3-pin connector device, M8 Ã 1
- Function:
- Level detection
- Design:
- Threaded barrel
- Construction size:
- M8 x 1
- Rated switching distance:
- 2 mm
- Operating voltage:
- 18?à30 VDC
- Output function:
- NO/NC (NO pre-set), NPN
- Electrical connection:
- Connector, M8 ?ù 1
- Housing material:
- Stainless steel
- Ambient temperature:
- -25?à+70 ??C
- Protection class:
- IP67
- Quick Start Guide:
- View
- Catalog:
- View
- Datasheet:
- View
