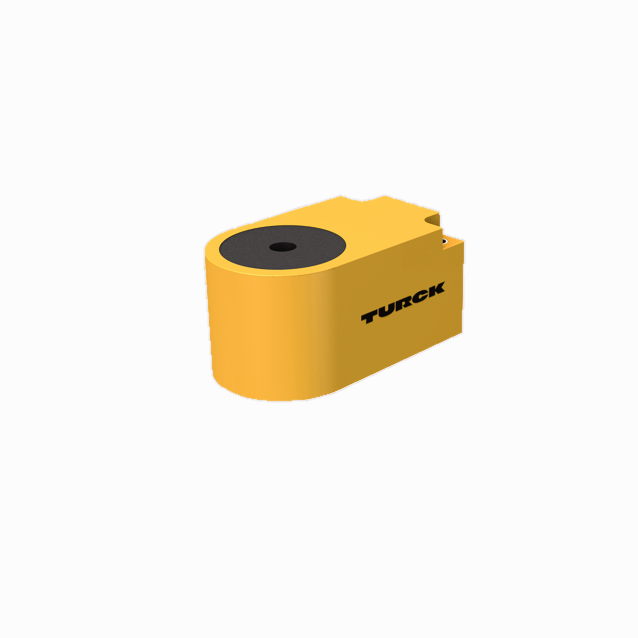

Turck Bi10R-W30-Dap6X-H1141 Inductive 14038

(No reviews yet) Write a Review
SKU:
BI10R-W30-DAP6X-H1141
Condition:
New
EAN:
4047101000115
eCl@ss-Code (V5.1.4)::
27270101 -/- Inductive proximity switch
Customs tariff number:
85365019900
Country of origin:
DE
Weight:
81 g
Design:
Ring sensor
Construction size:
60 x 35 x 30 mm, W30
Inside ring diameter D:
10.1 mm
Operating voltage:
10…30 VDC
Output function:
NO contact, PNP
Switching frequency:
0.0080 kHz
Electrical connection:
Connector, M12 × 1
Housing material:
Plastic, PA12-GF30
Ambient temperature:
-25…+70 °C
Protection class:
IP67
Special features:
Ring sensor, dynamic output
$601.00

Description

Inductive Sensor, Ring Sensor, Rectangular, height 30 mm, Plastic, PA12GF30, DC 3-wire, 1030 VDC, Dynamic output behaviour, NO contact, PNP output, M12 x 1 male connector, Pulse duration 100 ms, Sensitivity adjusted via potentiometer
