Turck Bi10U-Mt30-Ap6X2-H1141/S1589 Inductive 1636291
Turck
$201.10
(No reviews yet)
Write a Review
Write a Review
Turck
Turck Bi10U-Mt30-Ap6X2-H1141/S1589 Inductive 1636291
Manufacturer's Part Number: 1636291

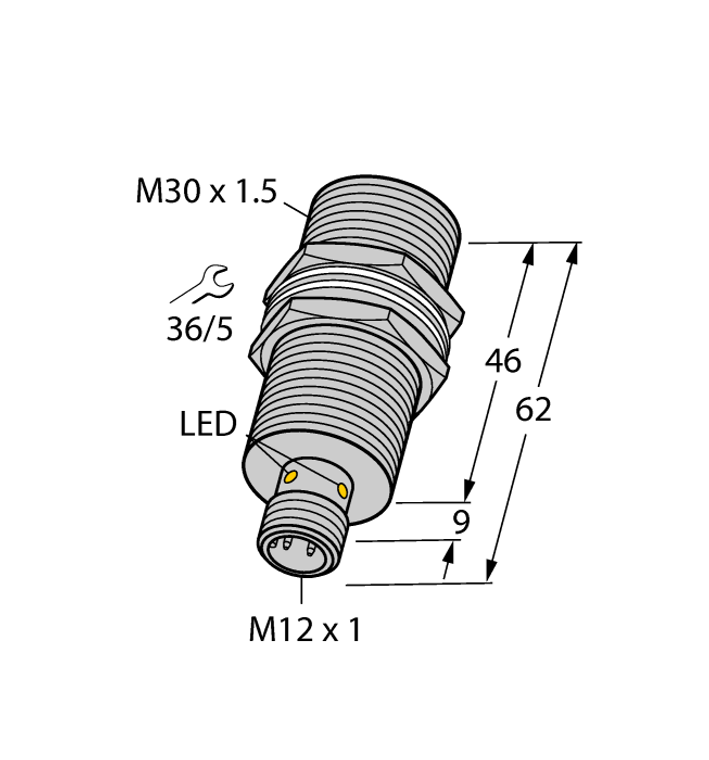

Inductive Sensor. With WeldGuard coating. Ident. no.: 1636291. Threaded barrel, M30 x 1.5. Brass, PTFE. Front cap with special coating, very resistant to thermal and mechanical load. Factor 1 for all metals. Protection class IP68. Resistant to magnetic fields. Extended temperature range. High switching frequency. DC 3-wire, 10
30 VDC. NO contact, PNP output. M12 x 1 male connector
- Design:
- Threaded barrel
- Construction size:
- M30 x 1.5
- Rated switching distance:
- 10 mm
- Mounting:
- Flush
- Operating voltage:
- 10?à30 VDC
- Output function:
- NO contact, PNP
- Switching frequency:
- 1.0 kHz
- Electrical connection:
- Connector, M12 ?ù 1
- Housing material:
- Metal, CuZn, PTFE-coated
- Ambient temperature:
- -30?à+85 ??C
- Protection class:
- IP68
- Special features:
- uprox+, Factor 1, Resistant to magnetic fields, weldguard?«, PTFE-coated
- Flyer:
- View
- Catalog:
- View
- Datasheet:
- View
