Turck Bi15-Cp40-Vp4X2/S100-S10 Inductive 15019

(No reviews yet) Write a Review
SKU:
BI15-CP40-VP4X2/S100-S10
Condition:
New
EAN:
4047101069839
eCl@ss-Code (V5.1.4)::
27270101 -/- Inductive proximity switch
Customs tariff number:
85365080900
Country of origin:
DE
Weight:
230 g
Design:
Rectangular

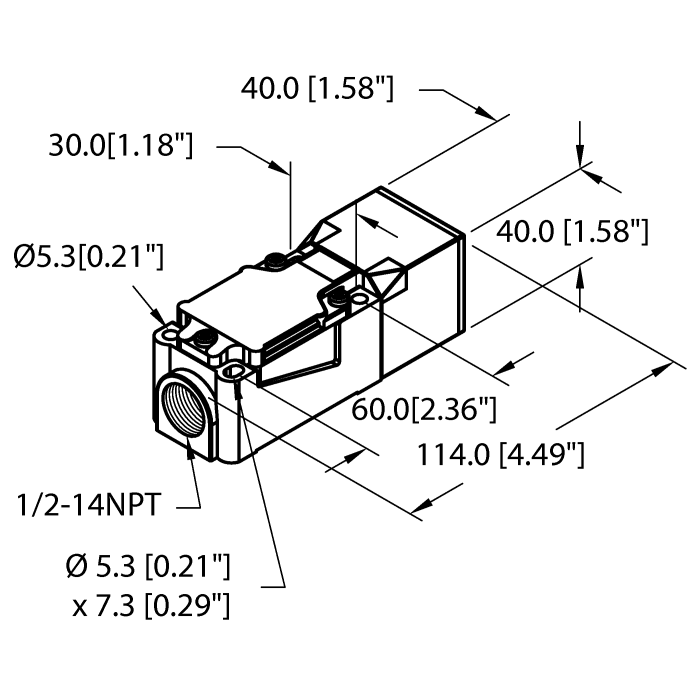

Construction size:
114 x 40 x 40 mm, CP40
Rated switching distance:
15 mm
Mounting:
Flush
Operating voltage:
10…65 VDC
Output function:
Complementary contact, PNP
Switching frequency:
0.150 kHz
Electrical connection:
Terminal chamber
Housing material:
Plastic, PBT-GF30-V0, Black
Ambient temperature:
-25…+100 °C
Protection class:
IP67
$376.90

Description

Inductive Sensor, With Increased Temperature Range, Rectangular, height 40 mm, Variable orientation of active face in 9 directions, Plastic, PBTGF30V0, High luminance corner LEDs, Optimum view on supply voltage and switching state from any position, DC 4-wire, 1065 VDC, Changeover contact, PNP output, Terminal chamber, Temperatures up to +100 °C, Rated switching distance: 15 mm, Flush
