Turck Bi15-Q20-Rdz32X2 Inductive 4256249
Turck
$204.10
Manufacturer's Part Number: 4256249
Inductive Sensor. Ident. no.: 4256249. Rectangular, height 20 mm. Active face on top. Plastic, PBT-GF30-V0. AC 2-wire, 20
250 VAC. DC 2-wire, 10
300 VDC. NC contact. Cable connection
- Design:
- Rectangular
- Construction size:

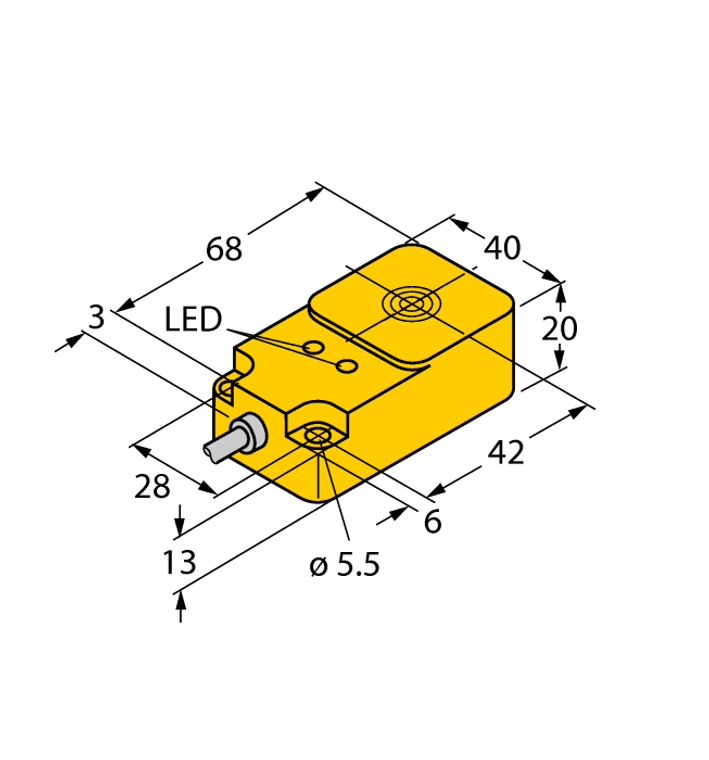

- 68 x 40 x 20 mm, Q20
- Rated switching distance:
- 15 mm
- Mounting:
- Flush
- Operating voltage:
- 20?à250 VAC / 10?à300 VDC
- Output function:
- NC contact, 2-wire
- Switching frequency:
- 0.020 kHz
- Electrical connection:
- Cable
- Cable length (L):
- 2.0 m
- Housing material:
- Plastic, PBT-GF30-V0
- Ambient temperature:
- -25?à+70 ??C
- Protection class:
- IP67
- Catalog:
- View
- Datasheet:
- View
