TURCK Bi15R-Q14-An6X2-H1141 Inductive 1407220
Turck
$337.80
Manufacturer's Part Number: 1407220
Inductive Sensor. Ring Sensor. Ident. no.: 1407220. Rectangular, height 14 mm. Plastic, PBT GF30 V0. Static output behaviour. Output pulse length min. 100 ms. DC 3-wire, 10
30 VDC. NO contact, NPN output. M12 x 1 male connector
- Design:
- Ring sensor

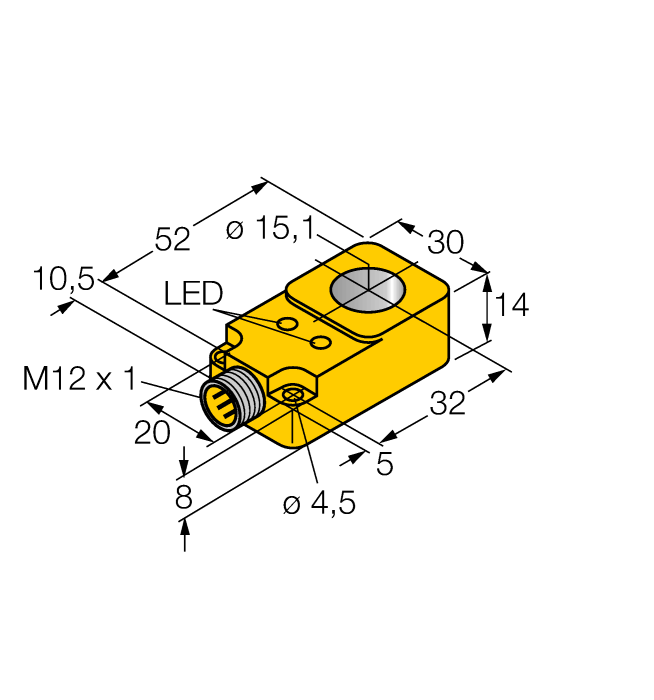

- Construction size:
- 62.5 x 30 x 14 mm, Q14
- Inside ring diameter D:
- 15.1 mm
- Operating voltage:
- 10?à30 VDC
- Output function:
- NO contact, NPN
- Switching frequency:
- 0.0080 kHz
- Electrical connection:
- Connector, M12 ?ù 1
- Housing material:
- Plastic, PBT-GF30-V0
- Ambient temperature:
- -25?à+70 ??C
- Protection class:
- IP67
- Special features:
- Ring sensor, static output
