Turck Bi15U-Cp40-Vn4X2/S10 Inductive 1540511

(No reviews yet) Write a Review
SKU:
BI15U-CP40-VN4X2/S10
Condition:
New
EAN:
4047101073485
eCl@ss-Code (V5.1.4)::
27270101 -/- Inductive proximity switch
Customs tariff number:
85365080900
Country of origin:
DE
Weight:
202 g
Design:
Rectangular
Construction size:
114 x 40 x 40 mm, CP40
Rated switching distance:
15 mm
Mounting:
Flush
Operating voltage:
10…65 VDC
Output function:
Complementary contact, NPN
Switching frequency:
0.250 kHz
Electrical connection:
Terminal chamber
Housing material:
Plastic, PBT-GF30-V0, Black
Ambient temperature:
-30…+85 °C
Protection class:
IP68
Special features:
uprox+, Factor 1, Resistant to magnetic fields
$234.20

Description

Inductive Sensor, Rectangular, height 40 mm, Variable orientation of active face in 9 directions, Plastic, PBTGF30V0, DC 4-wire, 1065 VDC, Changeover contact, NPN output, Terminal chamber, Factor 1 for all metals, Protection class IP68, Resistant to magnetic fields, Extended temperature range, High switching frequency, Rated switching distance: 15 mm, Flush
View AllClose

Related Products

Related Products

Turck Bi20-Cp40-Vn4X2/S10 Inductive Sensor, Standard

Turck Bi20-Cp40-Vn4X2/S10 Inductive 1579221

$248.30
Inductive Sensor, Rectangular, height 40 mm, Variable orientation of active face in 9 directions, Plastic, PBTGF30V0, High luminance corner LEDs, Optimum view on supply voltage and switching state...
BI20-CP40-VN4X2/S10
Turck Ni20Nf-Cp40-Vn4X2/S10 Inductive Sensor, With Selective Behaviour, Standard

Turck Ni20Nf-Cp40-Vn4X2/S10 Inductive 15282

$363.90
Inductive Sensor, With Selective Behaviour, Rectangular, height 40 mm, Variable orientation of active face in 9 directions, Plastic, PBTGF30V0, DC 4-wire, 1065 VDC, Changeover contact, NPN output,...
NI20NF-CP40-VN4X2/S10

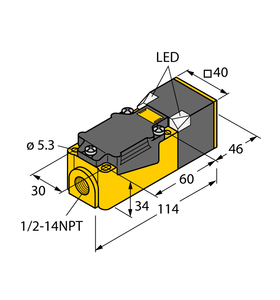

Turck Ni35-Cp40-Vn4X2/S10 Inductive Sensor, Standard
