Turck Bk 14-0 Field Wireable Connectors U2-07158
Turck
$45.80
Manufacturer's Part Number: U2-07158

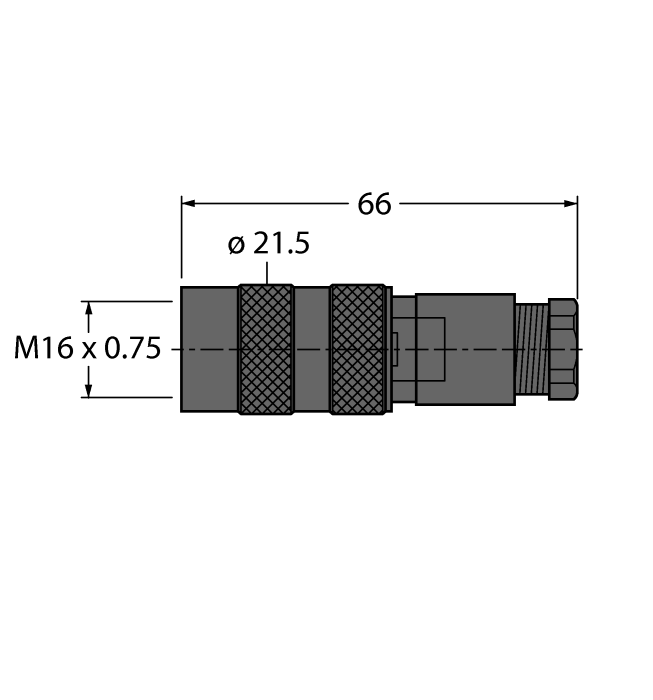

Actuator and Sensor Field Wireable. Female M16 0.75, straight. Ident. no.: U2-07158. Straight Female M16 versafast Field Wireable. 14 pins. Solder termination. Plastic housing. Solder connection. 14-pin. PG9 screw-in thread. Cable feedthrough 6.08.0 mm
- Application:
- Signal
- Connector A:
- Female, M16 ?ù 0.75, Straight
- Number of contacts:
- 14
- Connection mode:
- Solder contact
- Mounting thread:
- PG9
- Housing material:
- Plastic, PA
- Coupling nut/screw material:
- Brass, CuZn, Nickel-plated
- Acceptable cable diameter:
- 6?à8 mm
- Core cross-section/Clamping ability:
- 0.14?à24 mm??
- Voltage:
- 60 V
- Current:
- 3 A
- Flyer:
- View
- Catalog:
- View
- Datasheet:
- View
