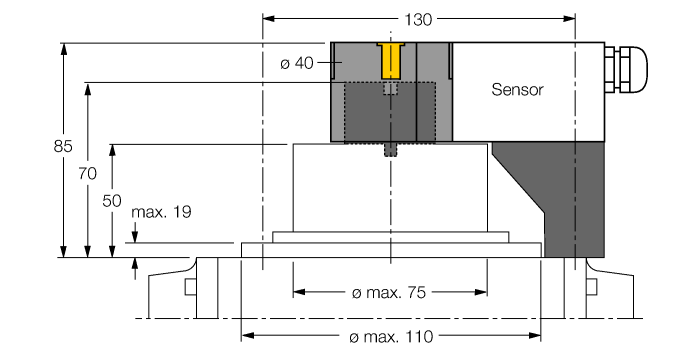

Accessories, Mounting Kit, Mounting kit for larger rotary actuators:, spacer plate and snap ring: max. 110ÿmm, Hole pattern on flange surface: 30 x 130ÿmm, Connection shaft (shaft extension) height: 50ÿmm/: max. 75ÿmm, Included in delivery:, 1 spacer plate 50ÿmm (POM), 1 spacer ring 20 mm (PP-GF30), Mounting the spacer plate:, 2 cylinder screws M5 x 12 [DIN 912A2], 2 cylinder screws M5ÿÿ65 [DIN 912-A2], 4 lock washers A5 [DIN 137-A2], Mounting the puck with spacer ring:, 1 countersunk screw M6ÿÿ45 [DIN 7991-A2], The spacer ring has a 4 x 4ÿmm cross-shaped notch allowing the actuator to be mounted offset by 90°, suited for crosswise-mounted drives.
