Manufacturer's Part Number: 100040110

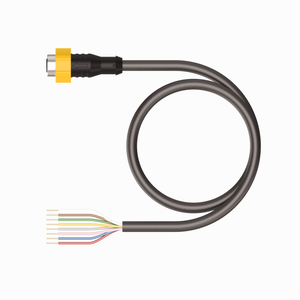

Actuator and Sensor Cable. Connection Cable. Ident. no.: 100040110. M12, Female, Straight, 8-pin, Torque sleeve. General Purpose Cable. Black PVC jacket, 8X24 AWG. -40 Cold Bend Rating. Flame Ratings: UL1061, CSA FT1
- Application:
- Signal
- Design:
- Single-ended
- Connector A:
- Female, M12 ?ù 1, Straight, A-code
- Number of contacts:
- 8
- Connector body:
- Plastic, TPU, Black
- Coupling nut:
- Brass, CuZn, Nickel-plated
- Current:
- 3 A
- Cable diameter:
- ?ÿ 5.69 mm
- Length (L):
- 2.0 m
- Cable jacket:
- PVC, Black
- Number of Conductors:
- 8
- Protection class (When coupled):
- IP67, IP68, IP69, IP69K
- Special Features:
- Torque sleeve
- Approvals:
- UL 2238, CSA C22.2 No. 182.3, CE, UKCA, RoHS
- Flyer:
- View
- Catalog:
- View
- Datasheet:
- View
