Manufacturer's Part Number: 100040185

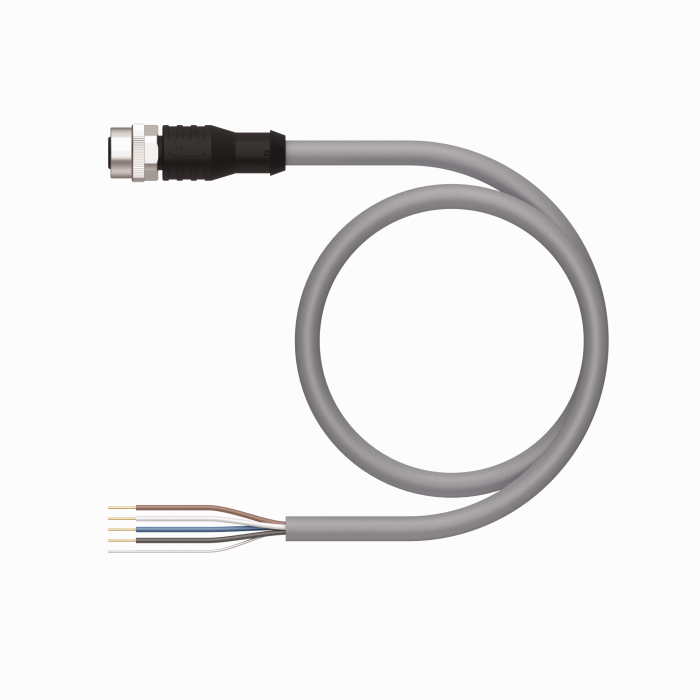

Actuator and Sensor Cable. Connection Cable. Ident. no.: 100040185. M12, Female, Straight, 5-pin. Instrumentation Tray Cable. Gray PVC jacket, shielded, 4X22 AWG. Sunlight Resistant. -40 Cold Bend Rating. Oil Resistant. Flame Ratings: UL 1685 FT4, UL1061, CSA FT4
- Application:
- Signal
- Design:
- Single-ended
- Connector A:
- Female, M12 ?ù 1, Straight, A-code
- Number of contacts:
- 5
- Connector body:
- Plastic, TPU, Black
- Coupling nut:
- Stainless Steel, 316L (1.4404), Passivated
- Current:
- 4 A
- Cable diameter:
- ?ÿ 5.33 mm
- Length (L):
- 20.0 m
- Cable jacket:
- PVC, Gray
- Number of Conductors:
- 4
- Protection class (When coupled):
- IP67, IP68, IP69, IP69K
- Approvals:
- UL 2238, CSA C22.2 No. 182.3, CE, UKCA, RoHS
