Manufacturer's Part Number: U7324

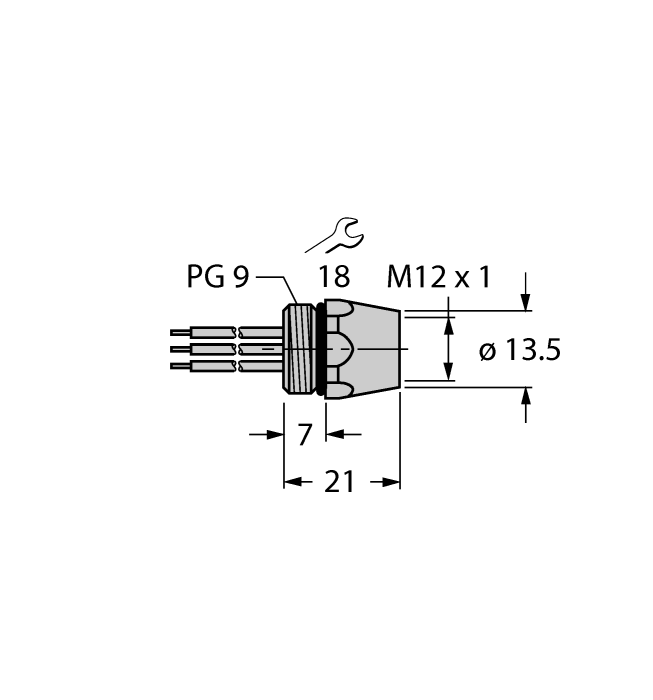

FOUNDATION fieldbus Receptacle. Front Mount. Ident. no.: U7324. Female M12 eurofast Receptacle. PG9 screw-in thread. Stainless steel flange housing. 4-pin, solderable. For use in FOUNDATION fieldbus and PROFIBUS-PA applications
- Application:
- Data
- Design:
- Single-ended
- Connector A:
- Female, M12 ?ù 1, A-code
- Number of contacts:
- 4
- Mounting orientation:
- Front mount
- Mounting thread:
- PG9
- Fieldbus Protocol:
- FOUNDATION fieldbus
- Voltage:
- 250 V
- Current:
- 4 A
- Protection class (When coupled):
- IP68
- Approvals:
- CE
- Flyer:
- View
- Catalog:
- View
- Datasheet:
- View
