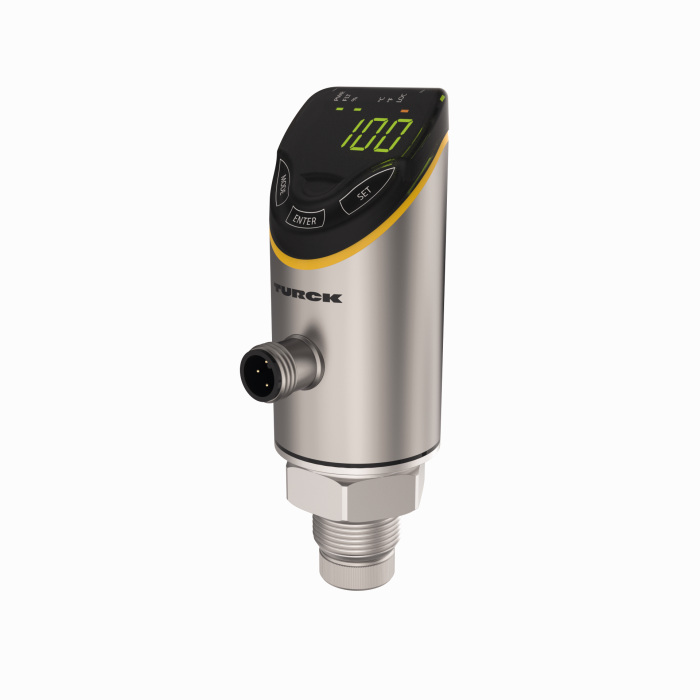

TURCK FS121-2UPN8-H1141
Turck
$437.20
Manufacturer's Part Number: 100047864
Flow Monitoring Processor Unit. With 2 PNP/NPN Transistor Switching Outputs. Ident. no.: 100047864. Sensor housing material 1.4404 (316L). Media-contacting material: sensor dependent. 4-digit, 2-color (red/green), 12-segment display, rotatable by 180°. Protection class IP66, IP67 and IP69K (connected with sensor/sensor cable). Adjustment of flow rate via teach function. 17
33 VDC. NO/NC contact, PNP/NPN output, IO-Link. M12 Ã 1 connector. IO-Link with Smart Sensor Profile SSP4.1.2
- Function:
- Flow monitoring
- Design:
- With display (external probe)
- Operating voltage:
- 17?à33 VDC
- Output function:
- NO/NC programmable, PNP/NPN
- Communication protocol:
- IO-Link
- Electrical connection:
- Connector, M12 ?ù 1
- Housing material:
- Stainless-steel/Plastic, 1.4404 (AISI 316L)/Grilamid TR90 UV/Elastollan C 65 A 15 HPM 000/Ultramid A3X2G5
- Ambient temperature:
- -40?à+80 ??C
- Protection class:
- IP66/IP67/IP69K
- Approvals:
- cULus
- Manual:
- View
- Quick Start Guide:
- View
- Flyer:
- View
- Datasheet:
- View
