Manufacturer's Part Number: 46955

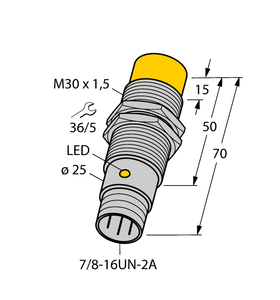

Inductive Sensor. Ident. no.: 46955. Threaded barrel, M30 x 1.5. Chrome-plated brass. DC 3-wire, 10
30 VDC. NO contact, NPN output. 7/8" male connector
- Design:
- Threaded barrel
- Construction size:
- M30 x 1.5
- Rated switching distance:
- 15 mm
- Mounting:
- Non-flush
- Operating voltage:
- 10?à30 VDC
- Output function:
- NO contact, NPN
- Switching frequency:
- 0.50 kHz
- Electrical connection:
- Connector, 7/8
- Housing material:
- Metal, CuZn, Chrome-plated
- Ambient temperature:
- -25?à+70 ??C
- Protection class:
- IP67
