Manufacturer's Part Number: 15753

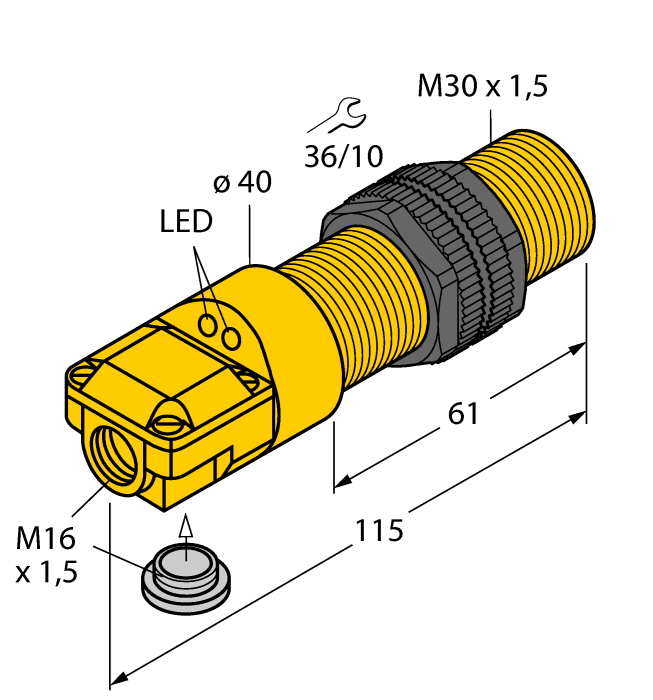

Inductive Sensor. Ident. no.: 15753. 2 cable entries (axial, radial). Threaded barrel, M30 x 1.5. Plastic, ABS. DC 4-wire, 10
65 VDC. Changeover contact, NPN output. Terminal chamber
- Design:
- Threaded barrel
- Construction size:
- M30 x 1.5
- Rated switching distance:
- 15 mm
- Mounting:
- Non-flush
- Operating voltage:
- 10?à65 VDC
- Output function:
- Complementary contact, NPN
- Switching frequency:
- 0.50 kHz
- Electrical connection:
- Terminal chamber
- Housing material:
- Plastic, ABS
- Ambient temperature:
- -25?à+70 ??C
- Protection class:
- IP67
- Catalog:
- View
- Datasheet:
- View
