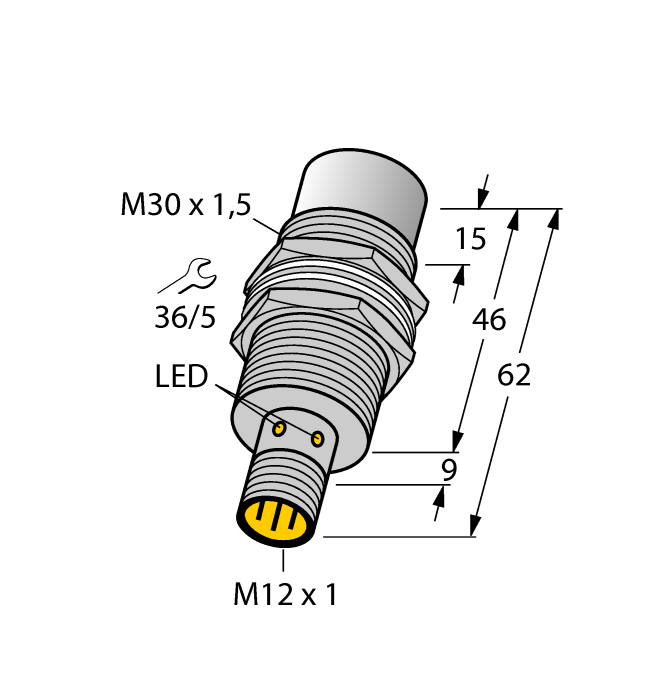

Name: Turck Ni30U-Mt30-Ap6X-H1141 Inductive 1646633
Brand: Turck
SKU: NI30U-MT30-AP6X-H1141
Price: 143 USD
Availability: InStock

Turck Ni30U-Mt30-Ap6X-H1141 Inductive 1646633

(No reviews yet) Write a Review

SKU:

NI30U-MT30-AP6X-H1141

MPN:

1646633

Condition:

New

Design:

Threaded barrel

Construction size:

M30 x 1.5

Rated switching distance:

30 mm

Mounting:

Non-flush

Operating voltage:

1030 VDC

Output function:

NO contact, PNP

Switching frequency:

1.0 kHz

Electrical connection:

Connector, M12 × 1

Housing material:

Metal, CuZn, PTFE-coated

Ambient temperature:

-30+85 °C

Protection class:

IP68

Special features:

uprox+, Factor 1, Resistant to magnetic fields, PTFE-coated

Catalog:

View

Datasheet:

View

Description

Description

Inductive Sensor. With Extended Switching Distance. Ident. no.: 1646633. Threaded barrel, M30 x 1.5. Brass, PTFE-coated. Factor 1 for all metals. Protection class IP68. Resistant to magnetic fields. Large switching distance. Integrated protection against predamping. Little metal-free spaces. DC 3-wire, 1030 VDC. NO contact, PNP output. M12 x 1 male connector
