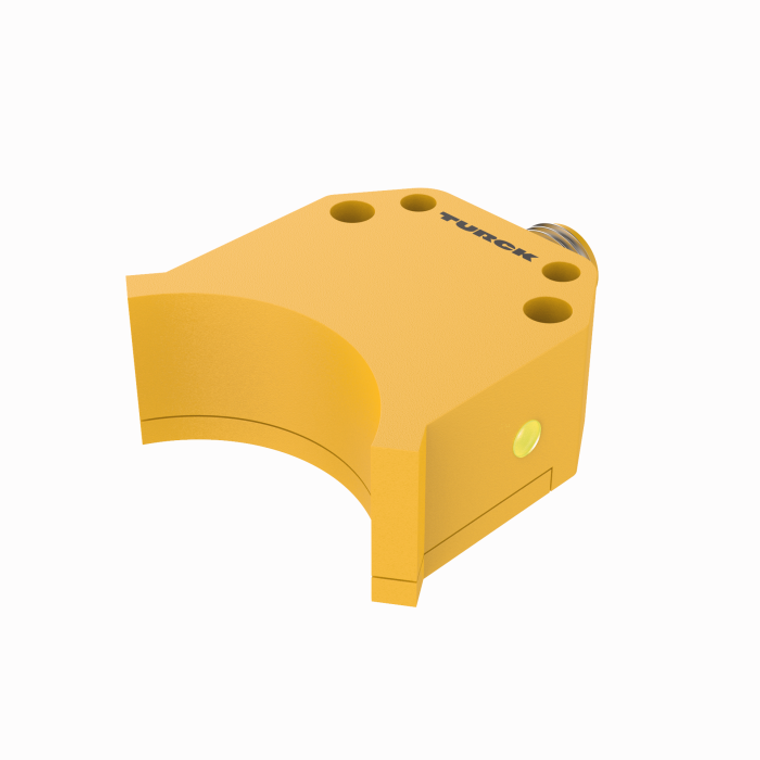

Turck Ni4-Ds20-2Y1X2-H1146 Inductive 1050012

(No reviews yet) Write a Review
SKU:
NI4-DS20-2Y1X2-H1146
Condition:
New
EAN:
4047101199734
eCl@ss-Code (V5.1.4)::
27270101 -/- Inductive proximity switch
Customs tariff number:
85365019900
Country of origin:
DE
Weight:
63 g
Design:
Dual sensor for valve monitoring
Construction size:
42 x 45 x 20 mm, DS20
Rated switching distance:
4 mm
Mounting:
Non-flush
Output function:
NAMUR
Switching frequency:
0.050 kHz
Electrical connection:
Connector, M12 × 1
Housing material:
Plastic, PBT-GF30-V0
Ambient temperature:
-25…+70 °C
Protection class:
IP67
Approvals:
ATEX II 1 G, ATEX II 2 G, ATEX II 3 G, ATEX II 1 D, ATEX II 2 D, ATEX II 3 D, SIL2, PLc
  • Turck Ni4-Ds20-2Y1X2-H1146 Inductive Sensor, For Rotary Actuators, Standard, KEMA 02 ATEX 1090X
  • Turck Ni4-Ds20-2Y1X2-H1146 Inductive Sensor, For Rotary Actuators, Standard, KEMA 02 ATEX 1090X
$164.00

Description

Inductive Sensor, For Rotary Actuators, ATEX category II 1 G, Ex zone 0, ATEX category II 1 D, Ex zone 20, SIL2 (Low Demand Mode) acc. to IEC 61508, PL c acc. to ISO 13849-1 at HFT0, SIL3 (All Demand Mode) acc. to IEC 61508, PL e acc. to ISO 13849-1 with redundant configuration HFT1, Rectangular, housing DS20, Plastic, PBTGF30VO, Two switching outputs for monitoring the position of rotary actuators, DC 2-wire, nom. 8.2 VDC, 2 outputs acc. to DIN EN 60947-5-6 (NAMUR), M12 x 1 male connector, Mounting on all standard actuators, Rated switching distance: 4 mm, Non-flush
