Turck Ni40U-Cp40-Vn4X2-B1141 Inductive 1540691
Turck
$326.40
Manufacturer's Part Number: 1540691
Inductive Sensor. With Extended Switching Distance. Ident. no.: 1540691. Rectangular, height 40 mm. Variable orientation of active face in 9 directions. Plastic, PBT-GF30-VO. High-luminance corner LEDs. Optimum view of operating voltage and switching state from any position. Factor 1 for all metals. Increased switching distance. Protection class IP68. Large coverage. Resistant to magnetic fields. Extended temperature range. High switching frequency. DC 4-wire, 10
65 VDC. Changeover contact, NPN output. 7/8" male connector
- Design:
- Rectangular
- Construction size:

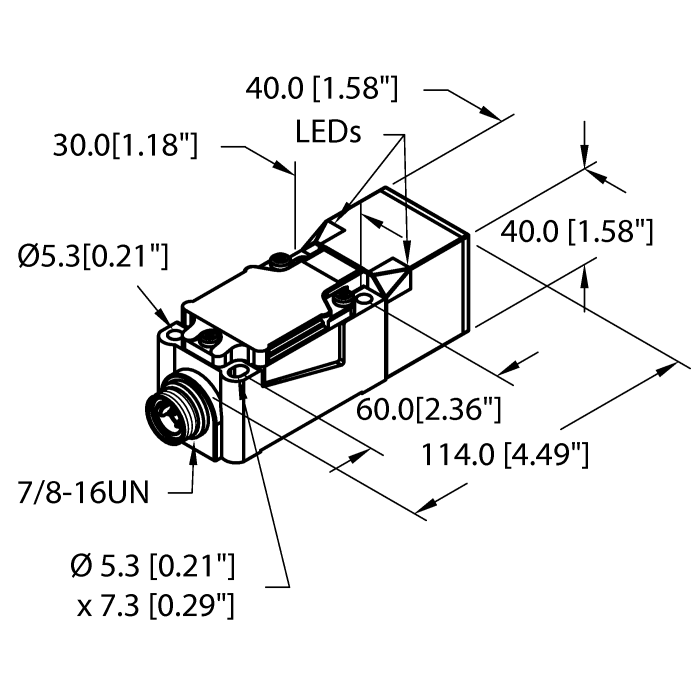

- 114 x 40 x 40 mm, CP40
- Rated switching distance:
- 40 mm
- Mounting:
- Non-flush
- Operating voltage:
- 10?à65 VDC
- Output function:
- Complementary contact, NPN
- Switching frequency:
- 0.250 kHz
- Electrical connection:
- Connector, 7/8
- Housing material:
- Plastic, PBT-GF30-V0, Black
- Ambient temperature:
- -30?à+85 ??C
- Protection class:
- IP68
- Special features:
- uprox+, Sn +, Factor 1
- Quick Start Guide:
- View
- Flyer:
- View
- Catalog:
- View
- Datasheet:
- View
