TURCK Ni50U-Q42Fwd-Vp6X-H1141 Inductive 1538305
Turck
$253.10
Manufacturer's Part Number: 1538305
Inductive Sensor. For the Food Industry. Ident. no.: 1538305. Rectangular, height 42.5 mm. Active face in front. Plastic, PA12-GF30. Factor 1 for all metals. Resistant to magnetic fields. Auto-compensation protects against pre-damping. Partially embeddable. Extended temperature range. High protection class IP69K for harsh environments. Protection against all common acidic and alkaline cleaning agents. Laser engraved label, permanently legible. Suitable for applications in the food industry. DC 4-wire, 10
30 VDC. Changeover contact, PNP output. M12 x 1 male connector
- Design:
- Rectangular
- Construction size:

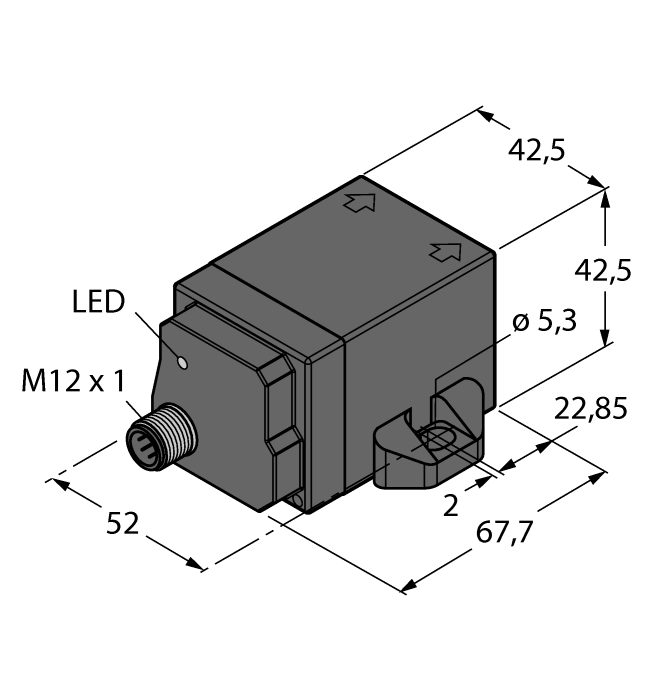

- 67.7 x 42.5 x 42.5 mm, Q42
- Rated switching distance:
- 50 mm
- Mounting:
- Non-flush
- Operating voltage:
- 10?à30 VDC
- Output function:
- Complementary contact, PNP
- Switching frequency:
- 0.250 kHz
- Electrical connection:
- Connector, M12 ?ù 1
- Housing material:
- Plastic, PA12-GF30, Black
- Ambient temperature:
- -40?à+100 ??C
- Protection class:
- IP68/IP69K
- Special features:
- uprox+, Factor 1, Resistant to magnetic fields
