Description

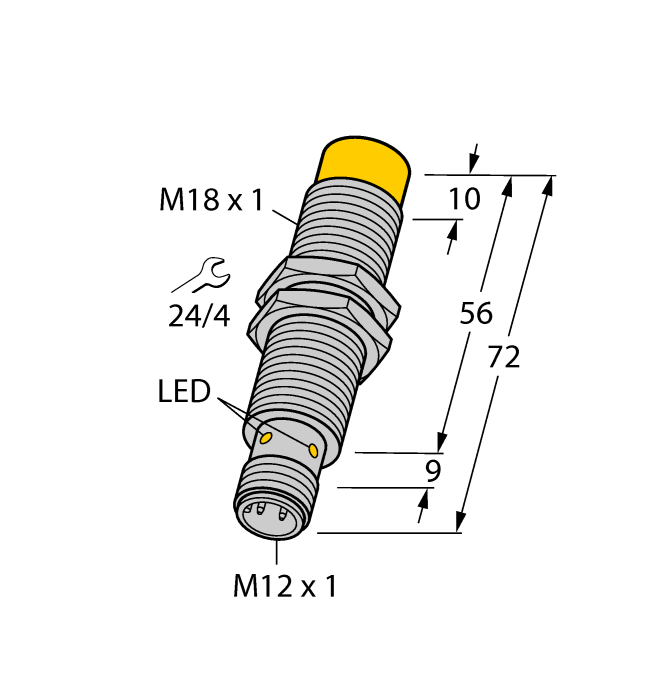

Inductive Sensor, Threaded barrel, M18 x 1, Chrome-plated brass, DC 4-wire, 1065 VDC, Changeover contact, NPN output, M12 x 1 male connector, Rated switching distance: 8 mm, Non-flush
View AllClose
Additional Information
EAN: |
4047101074703 |
eCl@ss-Code (V5.1.4):: |
27270101 -/- Inductive proximity switch |
Customs tariff number: |
85365080900 |
Country of origin: |
DE |
Weight: |
56 g |
Design: |
Threaded barrel |
Construction size: |
M18 x 1 |
Rated switching distance: |
8 mm |
Mounting: |
Non-flush |
Output function: |
Complementary contact, NPN |
Switching frequency: |
0.50 kHz |
Electrical connection: |
Connector, M12 × 1 |
Housing material: |
Metal, CuZn, Chrome-plated |
Ambient temperature: |
-25
+70 °C |
Protection class: |
IP67 |
