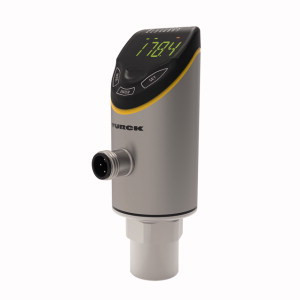

Turck PS510-25V-01-LI2UPN8-H1141 Pressure Sensor: -1 to 25 Bar Range, 18-33 VDC, Rotatable Display & Housing, IO-Link SSP4.1.1 Compatible
Turck
$456.00
Manufacturer's Part Number: 100001553
The Turck PS510-25V-01-LI2UPN8-H1141 is a versatile pressure sensor designed for precise measurement of relative pressure ranging from -1 to 25 bar. It operates efficiently within a voltage range of 18 to 33 VDC and features a 4-digit, 2-color (red/green) 12-segment display that can be rotated by 180° for optimal viewing. The housing is also rotatable after mounting, allowing for flexible installation. Equipped with a robust metal measuring cell, this sensor offers both NO/NC contact and PNP/NPN output options, along with analog output for current or voltage. It supports IO-Link SSP4.1.1 for advanced communication and is equipped with a G1/4? female thread process connection and an M12 × 1 connector device, ensuring compatibility with a wide range of systems.
Product Features
4-digit, 2-color (red/green), 12-segment display, rotatable by 180°, Housing is rotatable after mounting the process connection, Metal measuring cell, Pressure range -1 25 bar relative, 18 33 VDC, NO/NC contact, PNP/NPN output, analog output (current/voltage), IO-Link SSP4.1.1, Process connection G1/4? female thread, Connector device, M12 × 1
Product Features
4-digit, 2-color (red/green), 12-segment display, rotatable by 180°, Housing is rotatable after mounting the process connection, Metal measuring cell, Pressure range -1 25 bar relative, 18 33 VDC, NO/NC contact, PNP/NPN output, analog output (current/voltage), IO-Link SSP4.1.1, Process connection G1/4? female thread, Connector device, M12 × 1
- Datasheet:
- View
