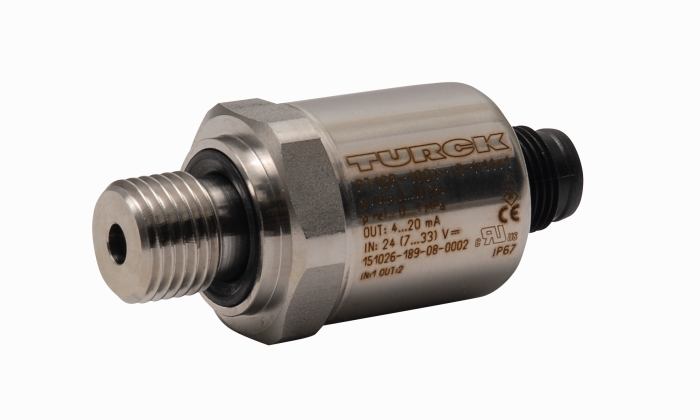

TURCK PT1V-1004-IOL-H1141
Turck
$251.80
Manufacturer's Part Number: 100021898
Pressure Transmitter. With 2 Switching Outputs and IO-Link. Ident. no.: 100021898. Ceramic measuring cell. Compact and robust design. Excellent EMC properties. Pressure range -1
1 bar rel.. 18
33 V DC. NO/NC contact, 2 Ã PNP/NPN outputs, IO-Link. Process connection G1/4 male thread (back sealing) according to DIN EN ISO 1179-2 with FPM profile sealing ring. Connector device, M12 Ã 1
- Design:
- Without display
- Process connection:
- G1/4 male thread (back sealing) according to DIN EN ISO 1179-2 with FPM profile sealing ring
- Pressure type:
- Relative pressure
- Pressure range bar:
- -1?à1 bar
- Pressure range psi:
- -14.5?à14.5 psi
- Operating voltage:
- 18?à33 VDC
- Electrical output:
- 2 ?ù switching output
- Communication protocol:
- IO-Link
- Electrical connection:
- Connector, M12 ?ù 1
- Housing material:
- Stainless-steel/Plastic, 1.4404 (AISI 316L)/polyarylamide 50 % GF UL 94 V-0
- Material pressure transducer:
- Ceramic AlO
- Medium temperature:
- -40?à+125 ??C
- Ambient temperature:
- -30?à+85 ??C
- Protection class:
- IP67
- Approvals:
- CE, Metrological certification (RUS), cULus
