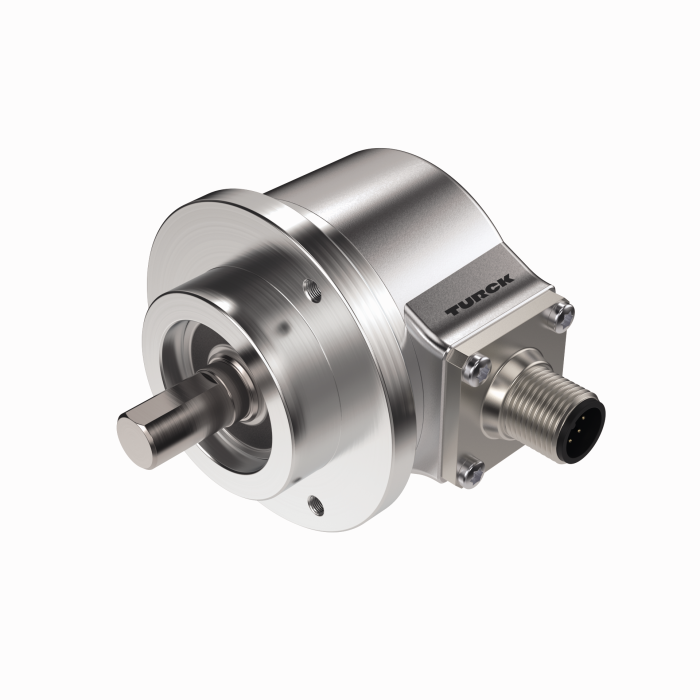

Turck Rei-E-113T12C-2B2500-H1181 Encoder 100011578

TURCK Rei-E-113T12C-2B2500-H1181 Encoder 100011578

Turck
SKU:
REI-E-113T12C-2B2500-H1181
Availability:
Factory Stock
$360.00
Condition:
New
Manufacturer's Part Number: 100011578
Current Stock:
Description
Incremental Encoder. Efficiency Line. Ident. no.: 100011578. Clamping flange, Ø 58 mm. Solid shaft, Ø 12 mm × 20 mm. Optical measuring principle. Shaft material: stainless steel. Protection class IP64 on housing and shaft side. 20…+70 °C. Max. 4500 rpm (continuous operation 3000 rpm). 10…30 VDC. Male connector, M12 x 1 , 8-pole. Push-pull, with inverted signals. Pulse frequency max. 300 kHz. 2500 pulses per revolution
Additional Information
Encoder line:
Efficiency-Line
Technology:
Optical
Output type:
Incremental
Shaft Type:
Solid shaft
Shaft diameter D (mm):
12
Flange diameter:
Ø 58 mm
Flange type:
Clamping flange
Resolution incremental:
2500 ppr
Operating voltage:
10…30 VDC
Output function:
Push-Pull/HTL, with inverted signals
Electrical connection:
Connector, M12 × 1
Housing material:
Die-cast zinc
Ambient temperature:
-20…+70 °C
Protection class shaft:
IP64
Protection class:
IP64
