Turck Ri-12H10E1-2B3600-12M23 Encoder 1545782
Turck
$390.00
Manufacturer's Part Number: 1545782

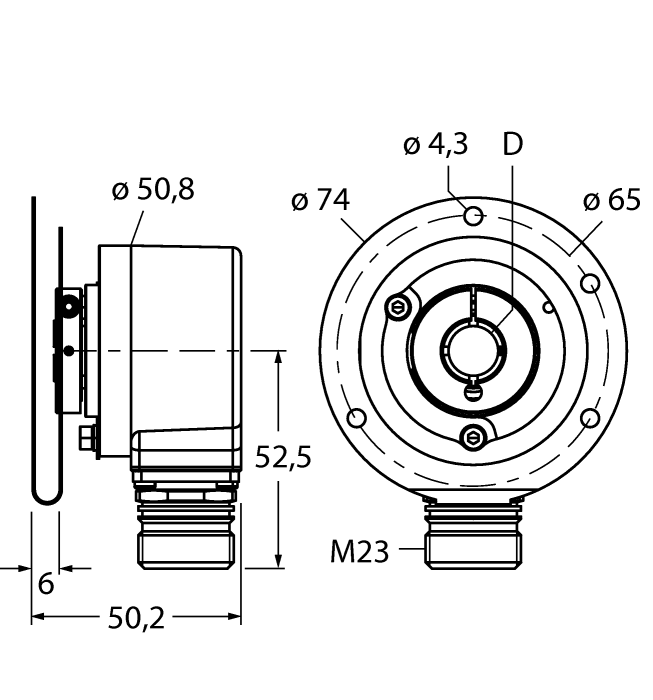

Incremental Encoder. Industrial Line. Ident. no.: 1545782. Flange with stator coupling, Ã 65mm. Hollow shaft, Ã 10mm. Optical measuring principle. Shaft material, stainless steel. Protection class IP67 on housing and shaft side. 40
+85 °C. Max. 6000 rpm (continuous operation 3000 rpm). 10
30 VDC. M23 male, 12-pin. Push-pull, with inverted signals. Pulse frequency max. 300 kHz. 3600 pulses per revolution
- Encoder line:
- Industrial-Line
- Technology:
- Optical
- Output type:
- Incremental
- Shaft Type:
- Hollow shaft
- Shaft diameter D (mm):
- 10
- Flange diameter:
- Ø 65 mm
- Flange type:
- Flange with stator coupling
- Resolution incremental:
- 3600 ppr
- Operating voltage:
- 10 30 VDC
- Output function:
- Push-Pull/HTL, with inverted signals
- Electrical connection:
- Connector
- Housing material:
- Die-cast zinc
- Ambient temperature:
- -40 +85 °C
- Protection class shaft:
- IP67
- Protection class:
- IP67
- Manual:
- View
- Catalog:
- View
- Datasheet:
- View
