Turck Ri-12H12T-4A2500-12M23 Encoder 1545458
Turck
$390.00
Manufacturer's Part Number: 1545458

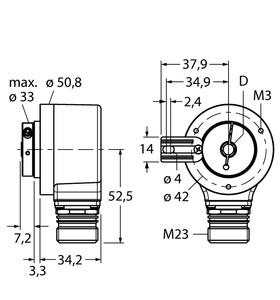

Incremental Encoder. Industrial Line. Ident. no.: 1545458. Flange with torque stop, Ã 50.8mm. Hollow shaft, Ã 12mm. Optical measuring principle. Shaft material, stainless steel. Protection class IP67 on housing and shaft side. 40
+85 °C. Max. 6000 rpm (continuous operation 3000 rpm). 5 VDC. Male connector, M23, 12-pole. RS422 with inverted signals. Pulse frequency max. 300 kHz. 2500 pulses per revolution
- Encoder line:
- Industrial-Line
- Technology:
- Optical
- Output type:
- Incremental
- Shaft Type:
- Hollow shaft
- Shaft diameter D (mm):
- 12
- Flange diameter:
- Ø 50.8 mm
- Flange type:
- Flange with mounting element
- Resolution incremental:
- 2500 ppr
- Output function:
- RS422, with inverted signals
- Electrical connection:
- Connector
- Housing material:
- Die-cast zinc
- Ambient temperature:
- -40 +85 °C
- Protection class shaft:
- IP67
- Protection class:
- IP67
