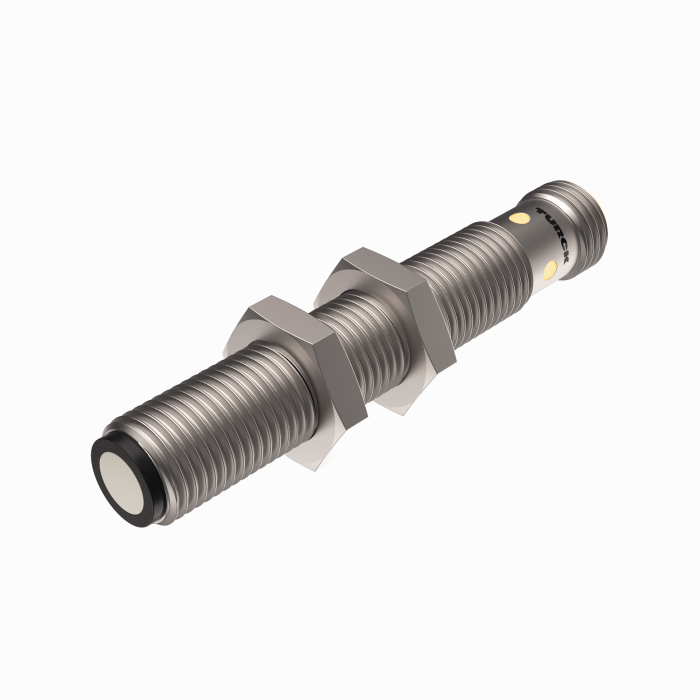

TURCK Ru20U-M12-Li8X2-H1141 Ultrasonic 100000280
Turck
$419.30
Manufacturer's Part Number: 100000280
Ultrasonic Sensor. Diffuse Mode Sensor. Ident. no.: 100000280. Smooth sonic transducer face. Cylindrical housing M12, potted. Connection via M12 Ã 1 male connector. Teach range adjustable via connection cable. Blind zone: 2.5 cm. Range: 20 cm. Resolution: 0.5 mm. Aperture angle of sonic cone: ±9 °. Analog output, 4
20 mA
- Function:
- Proximity
- Operating mode:
- Time of Flight
- Design:
- Threaded barrel
- Construction size:
- M12 x 1
- Radiation direction:
- straight
- Range:
- 25 200 mm
- Resolution:
- 0.5 mm
- Operating voltage:
- 15 30 VDC
- Output function:
- Analog output
- Current output:
- 4 20 mA
- Electrical connection:
- Connector, M12 × 1
- Housing material:
- Metal, CuZn, Chrome-plated
- Ambient temperature:
- -10 +60 °C
- Protection class:
- IP67
- Approvals:
- CE, cULus
- Flyer:
- View
- Catalog:
- View
- Datasheet:
- View
