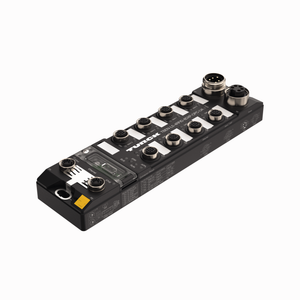

Turck Tben-L5-4Rfid-8Dxp Interface 100000836

Compact Multiprotocol RFID Module for Ethernet, Compact RFID and I/O module, PROFINET device, EtherNet/IP device or Modbus TCP master/slave, PROFINET S2 system redundancy, Integrated Ethernet switch, Supports 10 Mbps / 100 Mbps PROFINET Device; EtherNet/IP Device or Modbus TCP Master/Slave; Integrated Ethernet switch; 10 Mbps/100 Mbps supported; Glass fiber reinforced housing; Shock and vibration tested; Fully potted module electronics; Protection classes IP65; IP67; IP69K; Integration in PLC systems without special function block; Up to 128 bytes of user data (EtherNet/IP: up to 80 bytes) per read/write cycle per channel and use of fragments with 16 kilobytes of FIFO memory each; Data interface for convenient use of RFID functionality; Continuous HF bus mode with up to 32 HF read/write heads per channel; 4 channels with M12 connector for RFID; Mixed operation of HF and UHF read/write heads; 8 digital channels; configurable as PNP inputs and/or 2 A outputs; Integrated web server with reader parameterization; Web-based RFID test tool for easy air interface evaluation; LED displays and diagnostics; FLC/ARGEE programmable
