Turck Wi40-M18-Liu5/Cs11811 Inductive 1536681
Turck
$451.80
Manufacturer's Part Number: 1536681

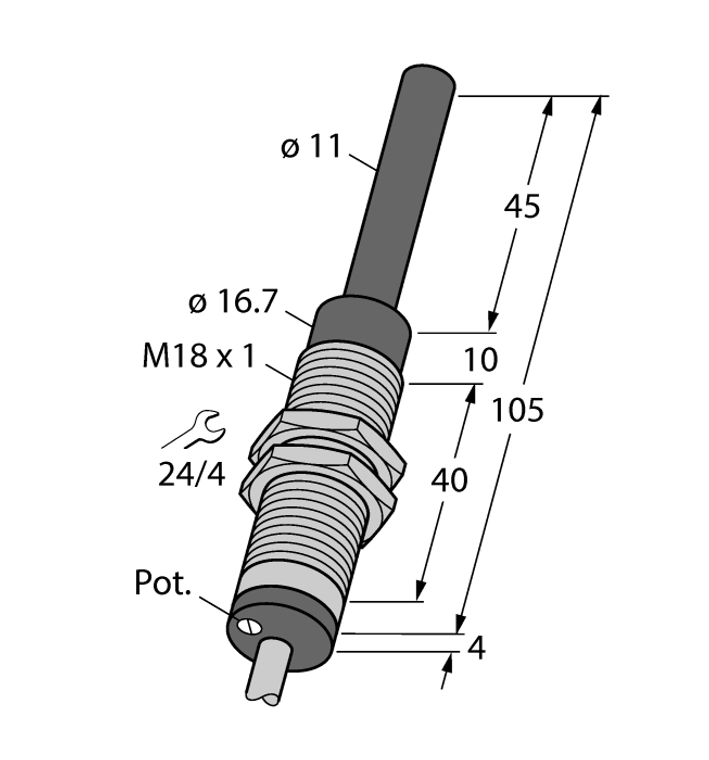

Inductive Sensor. With Analog Output. Ident. no.: 1536603. Threaded barrel, M18 x 1. Chrome-plated brass. Potentiometer to adjust the characteristic. Actuated via short-circuiting ring, blind hole or the like. 4 wire, 15
30 VDC. Analog output. 0
10 V and 4
20 mA. Cable connection
- Design:
- Threaded barrel
- Construction size:
- M18 x 1
- Measuring range:
- 0?à40 mm
- Mounting:
- Non-flush
- Operating voltage:
- 15?à30 VDC
- Output function:
- Analog output
- Voltage output:
- 0?à10 V
- Current output:
- 4?à20 mA
- Electrical connection:
- Cable
- Cable length (L):
- 2.0 m
- Housing material:
- Metal, CuZn, Chrome-plated
- Ambient temperature:
- -25?à+70 ??C
- Protection class:
- IP67
- Catalog:
- View
- Datasheet:
- View
