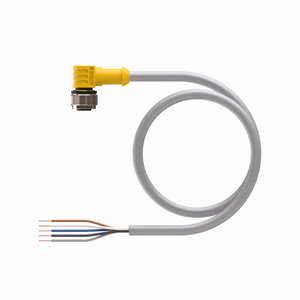

Actuator and Sensor Cable. Connection Cable. Ident. no.: U2436-80. M12, Female, Right angle, 5-pin. Instrumentation Tray Cable. Gray PVC jacket, 5X22 AWG. Sunlight Resistant. -40 Cold Bend Rating. Oil Resistant. Flame Ratings: UL 1685 FT4, UL1061, CSA FT4. Flexlife® and C-Track Approved
- Application:
- Signal
- Design:
- Single-ended
- Connector A:
- Female, M12 ?ù 1, Right angle, A-code
- Number of contacts:
- 5
- Connector body:
- Plastic, TPU, Yellow
- Coupling nut:
- Brass, CuZn, Nickel-plated
- Voltage:
- 250 V
- Current:
- 4 A
- Cable diameter:
- ?ÿ 5.69 mm
- Length (L):
- 0.20 m
- Cable jacket:
- PVC, Gray
- Number of Conductors:
- 5
- Protection class (When coupled):
- IP68, IP69K
- Approvals:
- UL 2238, CSA C22.2 No. 182.3, CE, UKCA, RoHS
- Flyer:
- View
- Catalog:
- View
- Datasheet:
- View
