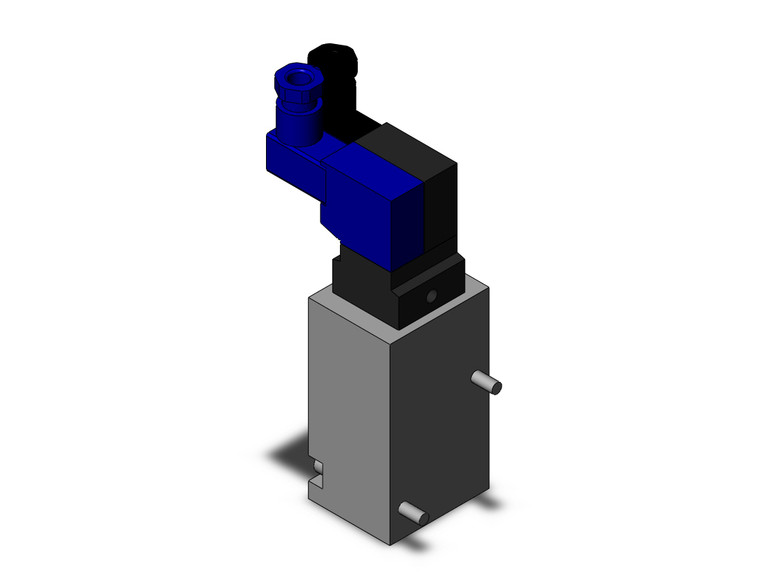

SMC VEX3421-1DZ Proportional Valve
- SKU:
- VEX3421-1DZ
- Condition:
- New
- Availability:
- In stock: 1
- Size:
- Base Mounted
- Operation:
- External Pilot Solenoid
- Port Size:
- w/o Sub-plate
- Thread:
- PT
- Voltage:
- 100VAC 50/60HZ
- Lead Wire:
- DIN Connector
- Surge Suppressor:
- Except Grommet
Description
power valve series vex includes a regulator valve (vex1*0), precision regulator (vex1*3), 3 position valve (vex3) and a economy valve (vex5). the 3 port large capacity poppet exhausting regulator is equipped with a relief port the same size as the connection port. the 3-port, 3-position double solenoid that permits vacuum suction, vacuum destruction, and suspension (closed) is ideal for a system where many valves are used.
- power valve series, 3 position valve
- body ported and base mounted styles
- port sizes: 1/8, 1/4, 3/8, 1/2, 3/4, 1, 1-1/4, 1-1/2, 2
- proof pressure: 1.5mpa
- ambient temperature: 0~50c (air op: 60c)
