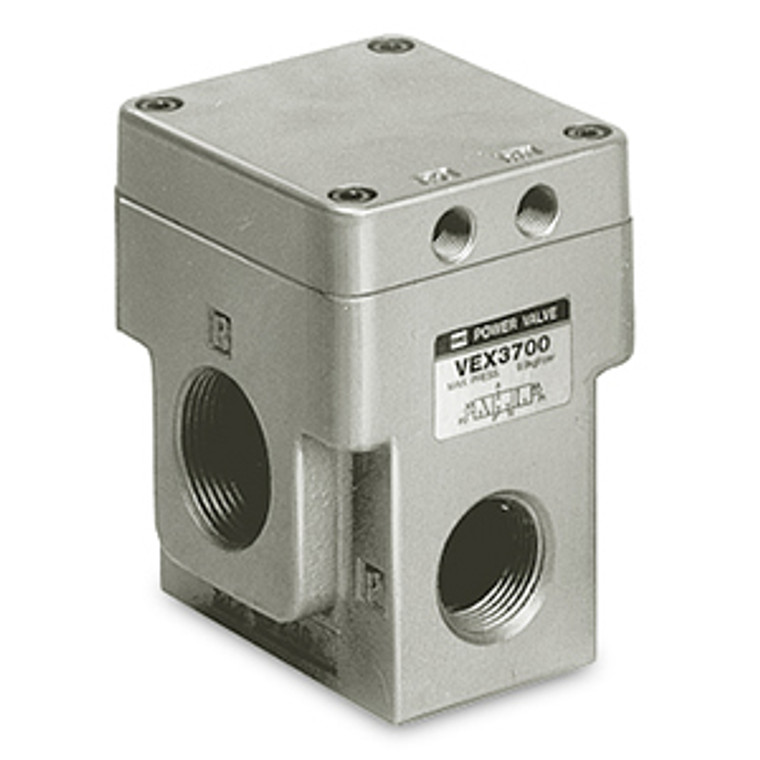

SMC VEX3702-103DZ-BN Proportional Valve
- SKU:
- VEX3702-103DZ-BN
- Condition:
- New
- Size:
- 70 (Body Ported)
- Operation:
- 2 (Internal Pilot Solenoid Valve)
- Port Size:
- 10 (1)
- Thread:
- Rc(PT)
- Voltage:
- 3 (110VAC 50/60HZ)
- Lead Wire:
- D (DIN Connector)
- Surge Suppressor:
- Z [Light & Surge Voltage Suppressor (Except Grommet)]
- Option:
- BN (Bracket+Silencer)
Description
VEX3, Power Valve, 3 Position Valve
Power valve series VEX includes a regulator valve (VEX1*0), precision regulator (VEX1*3), 3 position valve (VEX3) and a economy valve (VEX5). The 3 port large capacity poppet exhausting regulator is equipped with a relief port the same size as the connection port. The 3-port, 3-position double solenoid that permits vacuum suction, vacuum destruction, suspension (closed) is ideal for a system where many valves are used.
-
- Power valve series, 3 position valve- Body ported base mounted styles
- Port sizes: 1/8, 1/4, 3/8, 1/2, 3/4, 1, 1-1/4, 1-1/2, 2
- Proof pressure: 1.5MPa
- Ambient temperature: 0~50 C (air op: 60 C)
