SMC VFS2200-5FZ-01 4/5 Port Solenoid Valve
- SKU:
- VFS2200-5FZ-01
- Condition:
- New
- Function:
- 2 (2 Position Double)
- Body Option:
- 00 (Base Mounted Plug-in)
- Pilot:
- Internal Pilot
- Voltage:
- 5 (24VDC)
- Lead Wire:
- F (Plug-in)
- Surge Suppressor:
- Z (Light & Surge Suppressor)
- Manual Override:
- Non-locking Push Style (Flush)
- Piping:
- Side
- Port Size:
- 01 (Base Mounted w/Sub-plate 1/8, Body Ported 1/8)
- Thread:
- Rc
- Option:
- None
Description

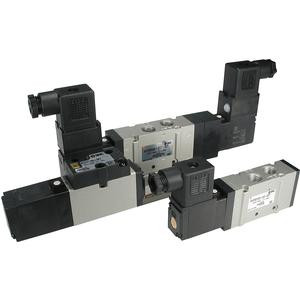

VFS2000, Body Ported & Base Mounted Type Valve
Series VFS consists of 5 port pilot solenoid valves with metal seals and base mounted or body ported type manifolds. Base mounted manifolds are available in plug-in and non plug-in styles. Body ported manifolds are available with bar or separate type manifold bases. Port sizes range from 1/8 to 3/4 with Rc(PT), NPTF G(PF) thread types available. Various options also available.
-
- VFS2000, body ported base mounted valves- Thread type: Rc(PT)
- Port sizes: 1/8, 1/4
- Maximum operating pressure: 9.9kgf/cm
- Ambient fluid temperature: -10 to 60 C
- Manual override: non locking push style
-
