Description

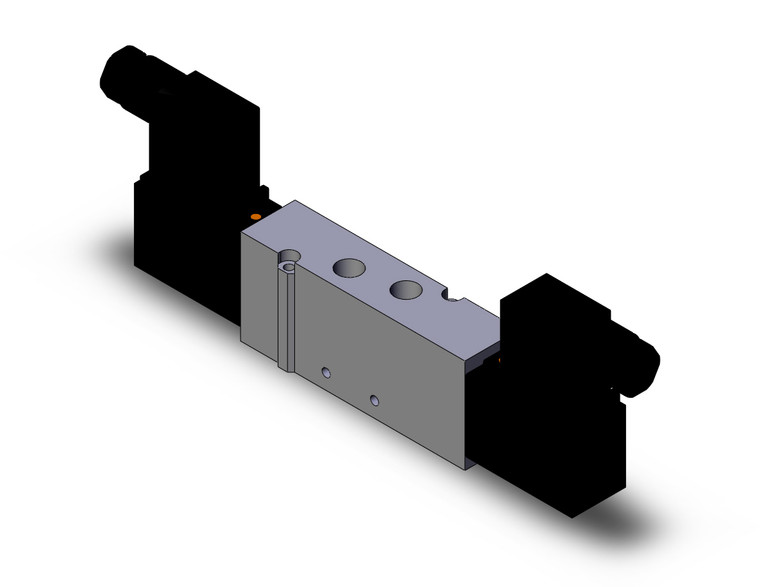

series vfs consists of 5 port pilot solenoid valves with metal seals and base mounted or body ported type manifolds. base mounted manifolds are available in plug-in and non plug-in styles. body ported manifolds are available with bar or separate type manifold bases. port sizes range from 1/8 to 3/4 with rc(pt), nptf and g(pf) thread types available. various options also available.
- vfs2000, body ported and base mounted valves
- thread type: rc(pt)
- port sizes: 1/8, 1/4
- maximum operating pressure: 9.9kgf/cm2
- ambient and fluid temperature: -10 to 60 c
- manual override: non locking push style
Additional Information
Function: |
2 (2 Position Double) |
Body Option: |
20 (Body Ported/Individual Pilot EXH) |
Pilot: |
Internal Pilot |
Voltage: |
4 (220VAC 50/60HZ) |
Lead Wire: |
D (DIN Connector) |
Surge Suppressor: |
None |
Manual Override: |
Non-locking Push Style (Flush) |
Piping: |
Side |
Port Size: |
01 (Base Mounted w/Sub-plate 1/8, Body Ported 1/8) |
Thread: |
Rc |
Option: |
None |
