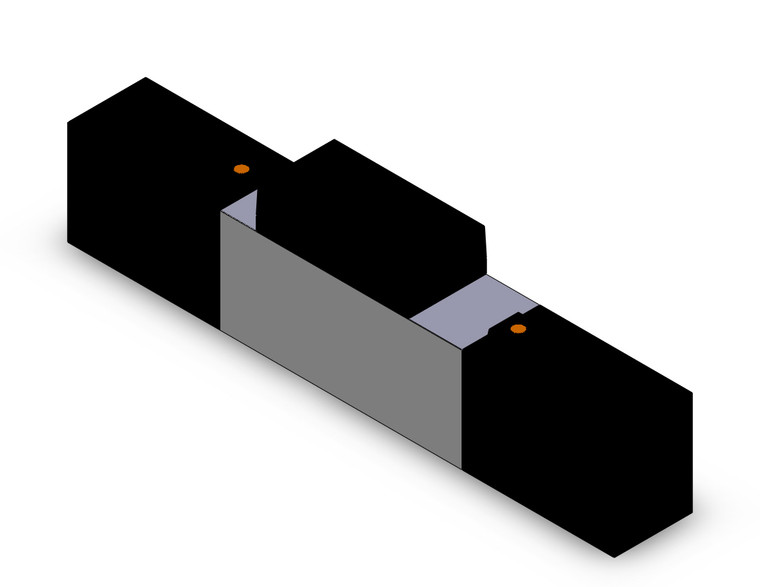

SMC VFS2500-3FZ 4/5 Port Solenoid Valve
- SKU:
- VFS2500-3FZ
- Condition:
- New
- Availability:
- In stock: 5
Description
VFS2000, Body Ported & Base Mounted Type Valve
Series VFS consists of 5 port pilot solenoid valves with metal seals and base mounted or body ported type manifolds. Base mounted manifolds are available in plug-in and non plug-in styles. Body ported manifolds are available with bar or separate type manifold bases. Port sizes range from 1/8 to 3/4 with Rc(PT), NPTF G(PF) thread types available. Various options also available.
-
- VFS2000, body ported base mounted valves- Thread type: Rc(PT)
- Port sizes: 1/8, 1/4
- Maximum operating pressure: 9.9kgf/cm
- Ambient fluid temperature: -10 to 60 C
- Manual override: non locking push style
-
Additional Information
Function: |
5 (3 Position Pressure Center) |
Body Option: |
00 (Base Mounted Plug-in) |
Pilot: |
Internal Pilot |
Voltage: |
3 (110~120VAC 50/60HZ) |
Lead Wire: |
F (Plug-in) |
Surge Suppressor: |
Z (Light & Surge Suppressor) |
Manual Override: |
Non-locking Push Style (Flush) |
Piping: |
Side |
Port Size: |
w/o Sub-plate |
Thread: |
Rc |
Option: |
None |
