Description

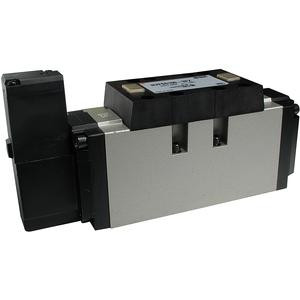

Vfs5000, Base Mounted Valve, Plug-In &Amp; Non Plug-In
Series Vfs Consists Of 5 Port Pilot Solenoid Valves With Metal Seals And Base Mounted Or Body Ported Type Manifolds. Base Mounted Manifolds Are Available In Plug-In And Non Plug-In Styles. Body Ported Manifolds Are Available With Bar Or Separate Type Manifold Bases. Port Sizes Range From 1/8 To 3/4 With Rc(Pt), Nptf G(Pf) Thread Types Available. Various Options Also Available.
-
- Fluid: Air And Inert Gas- Operating Pressure: 0.1Mpa To 1.0Mpa
- Effective Area (Cv): 2.2 To 5.7
- Coil Rated Voltage: 100, 200 Vac 50/60Hz; 24Vdc
- Response Time: 60 Or Less Ms
- Ambient/Fluid Temp: -10 To +60 C
-
