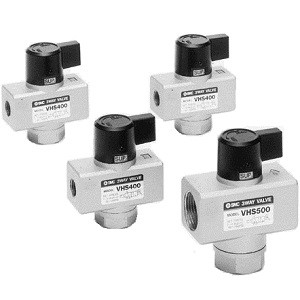

SMC VHS400-04 Mechanical Valve
- SKU:
- VHS400-04
- Condition:
- New
- Availability:
- In stock: 5
- Size:
- 400
- Flow:
- Left->Right
- Port Size:
- 1/2
Description
VHS*0*, 3 Port Residual Pressure Relief Valve, Non-Modular
The VHS series provides a convenient means of isolating supplied pressure in a pneumatic system and exhausting downstream pressure for maintenance purposes. The units can be locked in the exhaust position and can be an integral part of an energy isolation system. Air flow direction is easily identified by handle orientation and labelling.
- Fluid: air- Operating pressure range: 0.1 to 1.0MPa
- Effective area range mm 2 (Cv):1(P) to 2(A) 21 - 93 (1.18 - 5.22);2A to 3(R) 35 - 105 (1.97 - 5.90)
- Ambient fluid temperature: -5 to 60 C
- Required switching force: 7.5kgf (at 1.0MPa)
-
