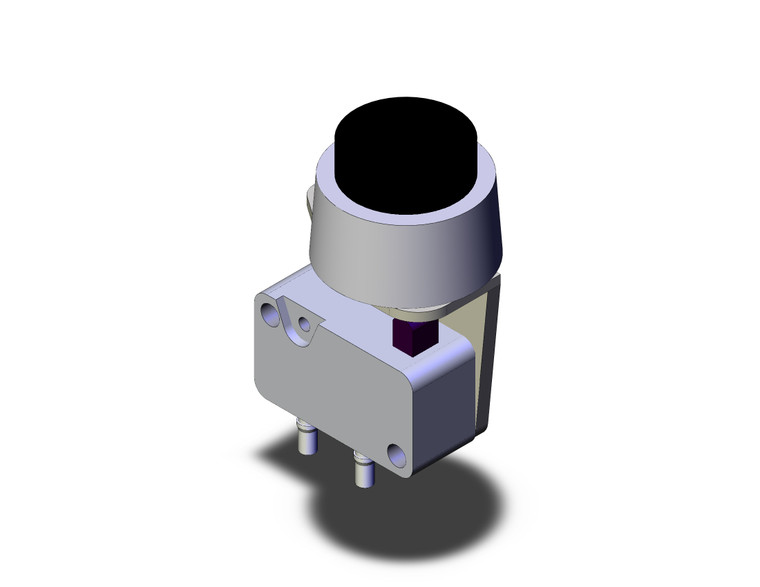

SMC VM1010-4N-32B Mechanical Valve
- SKU:
- VM1010-4N-32B
- Condition:
- New
- Number of Ports:
- 0 (3 Port)
- Piping:
- 1 (Bottom Ported)
- Overall Movement:
- 0 (4.8mm)
- Applicable Tubing:
- 4N [Nylon 4/2.5(T0425)]
- Actuator Type:
- 32 (Push Button)
- Suffix:
- B (Black Push Button)
Description
VM1000, Micro Mechanical Valve
The VM series is a mechanical, poppet valve. Their compact size requires little mounting space. The VM series offers a wide variety of actuator styles and flow capacity up to 1.0 Cv.
-
- Fluid: air- Operating pressure: 5 to 0.8MPa
- Effective area (Cv): 1mm 2 (0.055)
- Style of valve: N.C. poppet
- Number of ports: 2 or 3
- Piping: side or bottom
-
