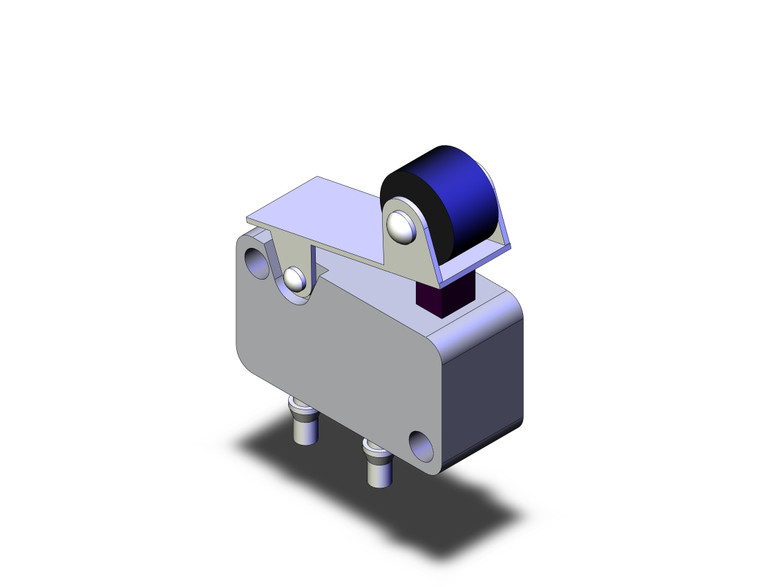

SMC VM1010-4NU-01 Mechanical Valve
- SKU:
- VM1010-4NU-01
- Condition:
- New
- Availability:
- In stock: 19
- Number of Ports:
- 3 Port
- Piping:
- Bottom Ported
- Overall Movement:
- 4.8mm
- Applicable Tubing:
- TS0425, Nylon ?ÿ4/3T0403, Polyurethane ?ÿ4/2.5TU0425
- Actuator Type:
- Roller Lever
Description
VM1000, Micro Mechanical Valve
The VM series is a mechanical, poppet valve. Their compact size requires little mounting space. The VM series offers a wide variety of actuator styles and flow capacity up to 1.0 Cv.
-
- Fluid: air- Operating pressure: 5 to 0.8MPa
- Effective area (Cv): 1mm 2 (0.055)
- Style of valve: N.C. poppet
- Number of ports: 2 or 3
- Piping: side or bottom
-
