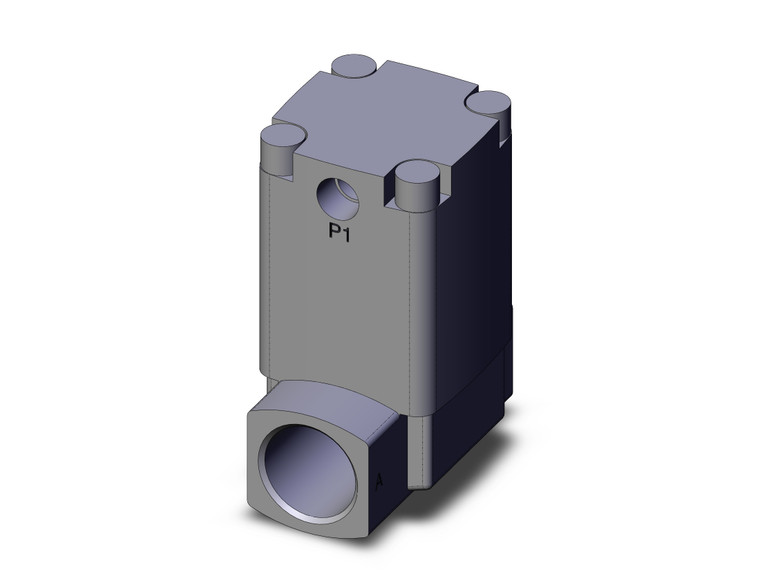

SMC VNB201A-15A 2 Port Process Valve

(No reviews yet) Write a Review
SKU:
VNB201A-15A
Condition:
New
Availability:
In stock: 48
Size:
2 [15(11)]
Valve Type:
1 [NC (Operating Pressure 0.5MPa)]
Sealant:
A (NBR Seal)
Body Material:
Standard (Bronze Body)
Pilot System Option:
Standard
Thread:
Rc(PT)
Port Size:
15A (1/2)
Bracket:
None
$52.35

Description

VNB (Air Operated), Process Valve for Flow Control

The VNB series a 2 port process valve for a wide variety of fluids including air, water, oil, gas and vacuum. It is available with three types of body material: copper alloy, aluminum and stainless steel.
-

- Air operated type
- Flow rate ranges from Cv of 0.80 to 43
- Orifice size: 7mm to 50mm
- Port size: 1/8 to 2 Rc(PT)
- Seal material: NBR, FKM, EPR
-

Series Catalog

AutoCAD File
