Description

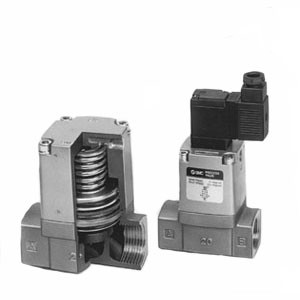

VNB (Air Operated), Process Valve for Flow Control
The VNB series a 2 port process valve for a wide variety of fluids including air, water, oil, gas and vacuum. It is available with three types of body material: copper alloy, aluminum and stainless steel.
-
- Air operated type- Flow rate ranges from Cv of 0.80 to 43
- Orifice size: 7mm to 50mm
- Port size: 1/8 to 2 Rc(PT)
- Seal material: NBR, FKM, EPR
-
Additional Information
Size: |
3 [20(14)] |
Valve Type: |
1 [NC (Operating Pressure 0.5MPa)] |
Sealant: |
A (NBR Seal) |
Body Material: |
Standard (Bronze Body) |
Pilot System Option: |
Standard |
Thread: |
N (NPT) |
Port Size: |
20A (3/4) |
Bracket: |
None |
