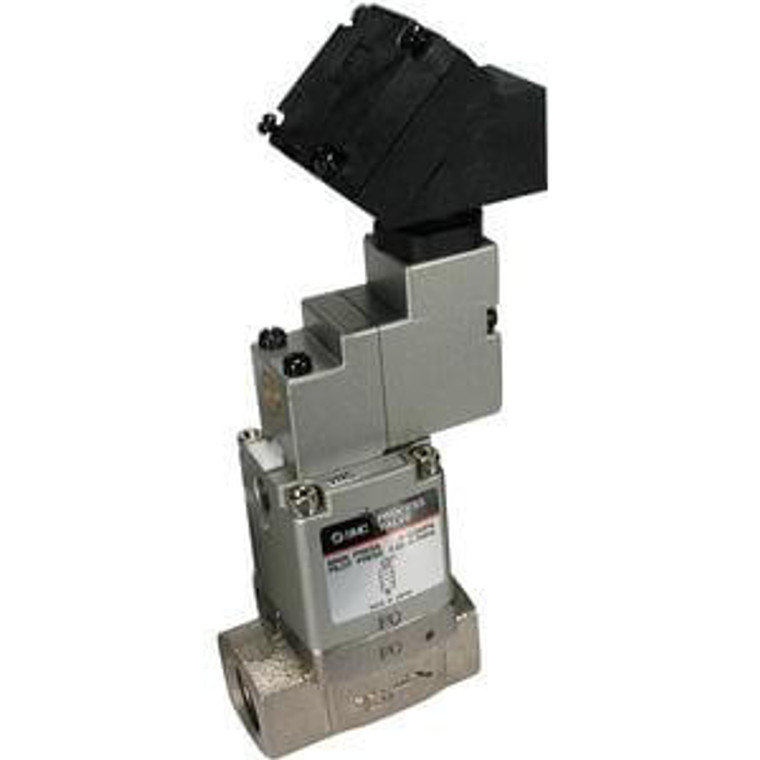

SMC VNC214B-10A-1D Process Valve

(No reviews yet) Write a Review
SKU:
VNC214B-10A-1D
MPN:
VNC214B-10A-1D
Condition:
New
Availability:
In stock: 13
CE Compliant:
No
X200:
No
Manual Override:
Non-locking Push Style
Lead Wire:
DIN Terminal
Voltage:
100VAC 50/60HZ
Port Size:
3/8
Thread:
PT
Sealant:
FPM seal
Valve Type:
Operating Pressure 1MPa
Size:
??11
$153.95

Description

VNC (Solenoid), Process Valve for Coolant

The VNC series is for controlling the cutting oils and coolants used in machine tools. It is available as both Normally Closed or Normally Open type.
-

- External pilot solenoid type
- Orifice size: 7mm to 80mm
- Port size: 1/8 to 2 inch
- Seal material: NBR, FKM

Series Catalog

AutoCAD File
